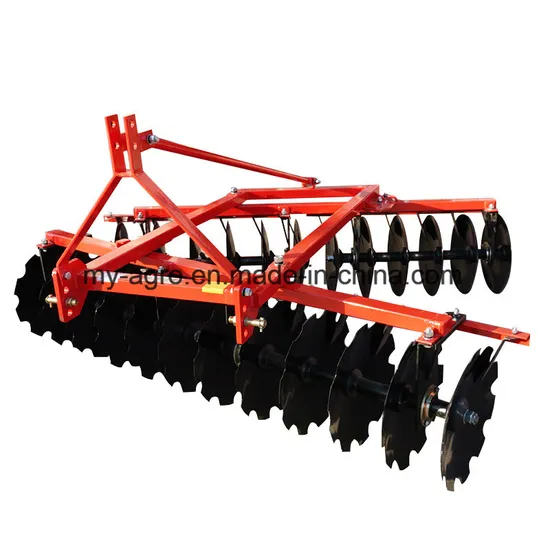

1bjx Series Tractor Mounted Middle Duty Disc Harrow with 18 Discs

Product Description

S
Product Parameters
ication

Model	1BJX-1.6	1BJX-1.8	1BJX-2.0	1BJX-2.2	1BJX-2.4	1BJX-2.5
Width of cut (mm)	1600	1800	2000	2200	2400	2500
Depth of cut (mm)	140
Dia of disc (mm)	560
Q'ty of disc	14	16	18	20	22	24
Weight (kg)	350	380	420	470	540	650
Tractor power (hp)	30	40	50	60	70	80
Mounted cat	Cat ll

Product Description
1BJ serires farm equipment disc harrow offset 3-point disc harrows are specially designed, manufactured and borrowed according the feature of foreign disc plough. It is 3-point mounted or trailed by tractor for your different need. This offset disc harrow can be matched with tractors from 30hp to 120hp. With the efficient productivity, reasonable utilization of the power, great ability of cutting and shattering the soil, the soil surface is smooth and loosening after harrowing. The disc blade can be round or notched as your requirements.

Detailed Photos

---
