200-1000kg/H PP/PE Agricultural Industrial Film/Woven Bag/Flakes/Package Foam Plastic Recycling Pelletizing Granulator Extruder Machine Pet with FDA Certificate

Product Description

PP/PE Agricultural Industrial Film/Woven Bag/Flakes/Package Foam Plastic Recycling Pelletizing Granulator Machine
Product Description

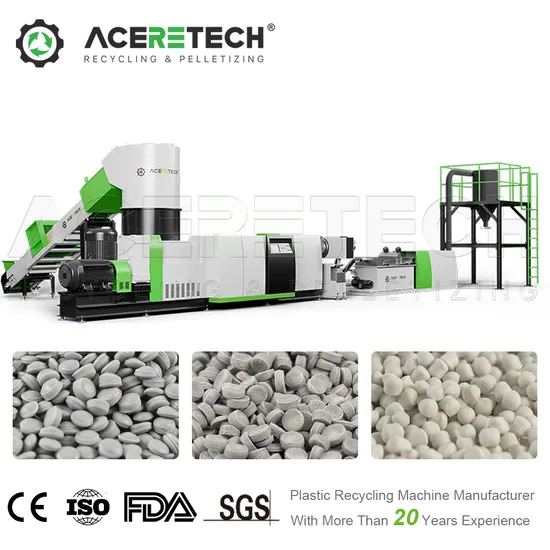

ACS-H compacting and pelletizing system: Size reduction, per-heating and pelletizing, 3 in 1 integrated recycling system. Lower investment for a high performance machine. It can provide higher output but with lower energy consumption.
Application: PE,PP,PS,ABS,XPS,EPS,PVB
Product Parameters

SPECIFICATIONS
Machine Model	ACS Series
Target Recycled Material	HDPE, LDPE, PP, BOPP, CPP, OPP, PA, PC, PS, PU, ABS
Final Product Shape	Particles
System Composition	Belt Conveyor, Cutting Compactor, Single Screw Extruder, Filtration,Pelletizer, Water Cooling Device, Dehydration Section,Conveyor Fan, Product Silo.
Output Range	150kg/h-1200kg/h
Feeding Device	Belt Conveyor (Standard), Roll Hauling off device (Optional)
Compactor Volume	300L-1600L
Diameter of Screw	80mm-180mm (Standard)
Material of Screw	38CrMoAlA (SACM-645), Bimetal (Optional)
L/D of Screw	31/1, 32/1, 34/1, 36/1 (According to the characteristics of recycling)
Heater of Barrel	Ceramic heater or Far-infrared heater
Cooling of Barrel	Air cooling of fans through blowers
Vacuum Deashing Exhaust	Two Double-zone vacuum degassing system (Standard)
Pelletizing Type	Water-ring pelletizing/ water-strands pelletizing/ Under-water pelletizing
Voltage Standard	According to the Voltage of the Customer's Location
Optioanl Device	Metal detector, Roll hualing off device, Masterbatch and additives feeder
Warranty	13 months from the date of bill of lading
Technical Services	project design, factory construction, installation and recommendations, commissioning

Machine Model	Compactor		Single Screw Extruder
	Volume (Liter)	Motor Power (kw)	Screw Diameter (mm)	L/D	Extruder motor (kw)	Output capacity (kg/h)
ACS-H300/80	300	37	80	36	AC 55	160-220
ACS-H500/100	500	75	100	36	AC 110	300-380
ACS-H800/120	800	110	120	36	AC 160	450-550
ACS-H1000/140	1000	132	140	36	AC 200	600-700
ACS-H1200/160	1200	160	160	36	AC 250	800-1000
ACS-H1600/180	1600	200	180	36	AC 315	1000-1200

Product Details
Company Profile
FAQ
YOU ARE WELCOME TO OUR FACTORY AT ANY TIME
* ACERETECH is original manufacturer.
* If you interested in our products and we can fulfill your request , you may pay a visit to ACERETECH Factory.
* The meaning of visiting supplier, since seeing is believing, ACERETECH Machinery with own manufacture and developed& research team, we can send you engineers and make sure the high efficiency after-sales service.
SEE ACERETECH MACHINE HOW TO ENSURE THE QUALITY
* In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
* Each component before assembly needs strict control by inspecting personnel.
* Each assembly is in charge by a master who has working experience for more than 15 years
* After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory
THE AFTER-SALE SERVICE OF ACERETECH MACHINERY
* After finishing the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools.
* After the commissioning, we will package the equipment by the standard export package for shipment.
* According to the customer's request, we can arrange our engineers to customers' factories to do the installation and training.
* Engineers, sales managers, and after-sales service managers will form an after-sales team, online and offline, to follow the customers' project.

---
