Thin Wall Bearing Series 6800, 6900, Zz, 2RS, Nr, Ceramic Ball, Nylon Cage, Copper Cage

Product Description

Product Description 6800 series deep groove ball bearings

other series:https://delmarbearing.en.made-in-china.com/product-list-1.html

Bearing NO	(mm)Boundary Dimensions			(Kn)	(Kn)	(r/min) Limit Rotational Speed		(Kg) Weight
	d	D	B	Dynamic Load Rating Cr	Static Load Rating Cor	Grease Lubrication	Oil Lubrication
6800	10	19	5	1.72	0.84	34000	40000	0.0053
6801	12	21	5	1.92	1.04	32000	38000	0.0068
6802	15	24	5	2.07	1.26	28000	34000	0.0075
6803	17	26	5	2.63	1.57	26000	30000	0.0083
6804	20	32	7	4.0	2.47	22000	26000	0.02
6805	25	37	7	4.5	3.15	18000	22000	0.022
6806	30	42	7	4.7	3.65	15000	18000	0.026
6807	35	47	7	4.9	4.1	14000	16000	0.028
6808	40	52	7	6.35	5.5	12000	14000	0.033
6809	45	58	7	6.6	6.15	11000	13000	0.041
6810	50	65	7	6.4	6.2	9500	11000	0.054
6811	55	72	9	8.8	8.5	8500	10000	0.081
6812	60	78	10	11.5	10.9	8000	9500	0.101
6813	65	85	10	11.9	12.1	7500	8500	0.12
6814	70	90	10	12.1	12.7	6700	8000	0.13
6815	75	95	10	12.5	13.9	6300	7500	0.14
6816	80	100	13	12.7	14.5	6000	7100	0.15
6817	85	110	13	18.7	20	5600	6700	0.27
6818	90	115	13	19.0	21	5300	6300	0.28
6819	95	120	13	19.3	22	5000	6000	0.29
6820	100	125	13	19.6	23	4800	5600	0.31
Note:Above-mentioned products include its modification series,such as Z,2Z,RS,and 2RS etc.

Bearing NO	(mm)Boundary Dimensions			(Kn)	(Kn)	(r/min) Limit Rotational Speed
	d	D	B	Dynamic Load Rating Cr	Static Load Rating Cor	Grease Lubrication	Oil Lubrication	(Kg) Weight
6900	10	22	6	2.7	1.27	32000	38000	0.01
6901	12	24	6	2.91	1.46	30000	36000	0.011
6902	15	28	7	4.35	2.26	26000	30000	0.016
6903	17	30	7	4.6	2.55	24000	28000	0.016
6904	20	37	9	6.4	3.7	19000	22000	0.0358
6905	25	42	9	7.05	4.55	16000	19000	0.0409
6906	30	47	9	7.25	5.0	14000	17000	0.0513
6907	35	55	10	10.6	7.25	12000	15000	0.078
6908	40	62	12	13.7	10.0	11000	13000	0.112
6909	45	68	12	14.1	10.9	9500	12000	0.14
6910	50	72	12	14.5	11.7	9000	11000	0.14
6911	55	80	13	16.0	13.3	8000	9500	0.179
6912	60	85	13	16.5	14.3	7500	9000	0.193
6913	65	90	13	17.4	16.1	7100	8500	0.206
6914	70	100	16	23.7	21.2	6300	7500	0.341
6915	75	105	16	24.4	22.6	6000	7100	0.362
6916	80	110	16	25.0	24.0	5600	6700	0.381
6917	85	120	18	32.0	29.6	5300	6300	0.527
6918	90	125	18	33.0	31.5	5000	6000	0.559
6919	95	130	18	33.5	33.5	4800	5600	0.586
6920	100	140	20	43.0	42	4500	5300	0.83
Note:Above-mentioned products include its modification series,such as Z,2Z,RS,and 2RS etc.

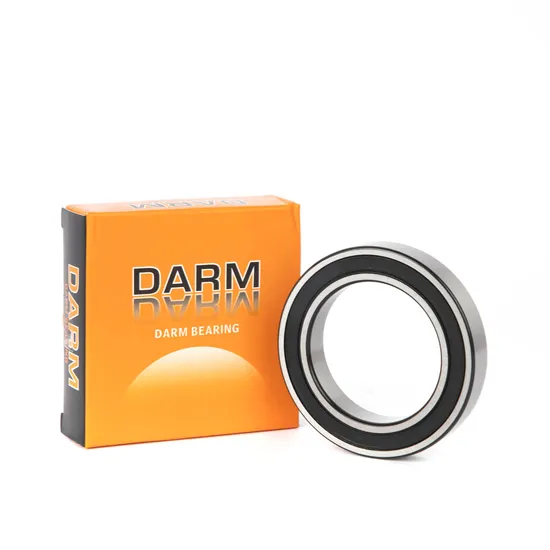

Detailed Photos

THE USE OF THE BEARING
Some tips on use
Rolling bearing is a precise part. Therefore it should be used carefully. No matter how high performance the bearing has, it can be obtained by improper use, the followings are the points for attention to use bearings.
(1) Keep clean the bearing and its surrounding areas
It is harmful to the bearing even by tiny dust which can not be seen by human eyes. Therefore it should always keep clean the surrounding environments in order to prevent the bearing from dust corrosion.
(2) Use bearing carefully
Scar and indentation can essily be produced out of strong impact to the bearing in use and become the cause of accidents. Therefore special caution should be given to its use.
(3) Use the appropriate operating tool
Avoid using a hammer or heavy direct tap on a bearing or sleeve, must use appropriate tools such as press or heating.
(4) Be careful to the rust corrosion of the bearings
The sweat in the hands will cause rust in operating the bearings. Therefore your hands should be cleanly washed and dried before operation. You'd better wear gloves in doing the work.
(5) Handler should familiar with bearing
(6) Establish bearing handling criteri
·Bearing storage
.Bearing and surrounding cleaning
.Dimension of mounting parts and inspection
.Machining quality
.Mounting handing
.After mounting inspection
·Disassembly handing
·Keep maintain
·Adding lubricant
Installation Instructions Bearing mounting
Precautions for proper mounting of bearing
1) Bearing preparation
Bearing should not be unpacked until before mounting due to spray anti-corrosion oil and pack anti-corrosion paper. In addition, spray anti-corrosion oil on bearing have good lubricate function. For general purpose, just directly using bearing fill-in grease bearings, without cleaning. However, bearing for instrument or high speed rotating must be cleaned with clean filtered oil in order to remove the anti-corrosion oil. At that time, the bearings are easy to corrosion could not storage long term.
2) Inspection of shafts and housings
Cleaning shaft and housing, confirming no scratched or machine burrs, no abrasive and cutting piece in housing. Secondly comppare with drawing, the shaft and housing of dimension, form and machining quality should be inspected.
chart 1 Measure location for shaft diameter chart 2 Measure location for housing bore diameter
As chart 1 and chart 2 showing, divided several locations to be measure on shaft and housing bore diameters, It should be careful inspected perpendicular between shaft, housing fillet dimension and shoulder.
Before mounting bearing, it should be sprayed mechanical oil on fitting surface after check out the shaft and housing.
Bearing storage
Before leaving the factory, the bearing is sprayed proper rust-inhibiting oil and packed rust-inhibiting paper. The quality of bearing is guaranteed, if the packing is not broken.
For long-term storage, if the humidity less than 65% and the temperature about 20, it should storage on shelf which is higher 30cm than ground.
In addition, storage occasion should avoid sunshine and contact with cold wall.
Pictures about packaging
Company Profile
Our Advantages
1. World-Class Bearing: We provide our customers with all types of indigenous bearing with world-class quality.
2. OEM or Non-Stand Bearings: Any requirement for Nonstandard bearings is Easily Fulfilled by us due to its vast knowledge and links in the industry.
3. Genuine products With Excellent Quality: The company has always proved the 100% quality products it provides with genuine intent.
4. After Sales Service and Technical Assistance: The company provides after-sales service and technical assistance as per the customer's requirements and needs.
5. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.
SAMPLES
1. Samples quantity: 1-10 PCS are available.
2. Free samples: It depends on the Model No., material and quantity. Some of the bearings samples need client to
pay samples charge and shipping cost.
3. It's better to start your order with Trade Assurance to get full protection for your samples order.
CUSTOMIZED
The customized LOGO or drawing is acceptable for us.
MOQ
1. MOQ: 10 PCS standard bearings.
2. MOQ: 1000 PCS customized your brand bearings.
OEM POLICY
1. We can printing your brand (logo, artwork)on the shield or laser engraving your brand on the shield.
2. We can custom your packaging according to your design
3. All copyright own by clients and we promised don't disclose any info.

---
