High Precision for Metal Drilling with 50mm Diameter Radial Drilling Machine Factory Price

Product Description

Detailed Photos

Product Description
Product Parameters

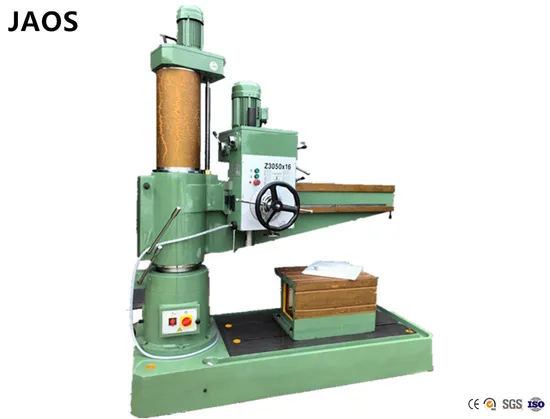

The main parameters	Z3050×16 Radial Drilling Machine
Maximum drilling diameter	48/50 (steel/casting) mm
Distance from spindle centerline to column generatrix (minimum - maximum)	360-1600 mm
Distance from spindle end to base table (minimum-maximum)	300-1150 mm
Spindle travel	220 mm
Spindle taper	MT.5
Spindle speed stages	6 Level
Spindle speed range	78.135.240.350.590.1100 r/min

Z3050x16/1 type rocker arm drilling machine, the machine speed and feed by a wide range of variable speed range, can be motorized, manual and micro-manipulation, can be at any time easy to turn on or cut off the feed. The feed safety mechanism is safe and reliable, and the clamping of each part is convenient and reliable. The spindle box has a small displacement error when unclamping, the variable speed control mechanism is concentrated on the spindle box, which is easy to operate and change the speed, and the hydraulic preselection of spindle speed and feed is quick, accurate and sensitive.
Adopting advanced structure, new technology, new process, perfect performance, simple structure, flexible operation, reliable work, high precision, long service life, easy maintenance, widely used in drilling, reaming, reaming and tapping threads in machining.
