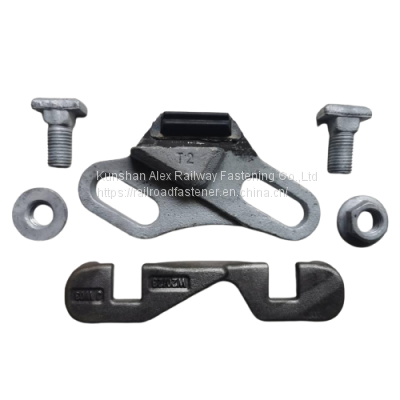

Weldable Rail Clip (Rail Clamp)Set for Crane rail QU100 fastening
Type :W20/CJ ; W20/AI ;
Material : Upper component: ductile cast iron ; vulcanize-bonded rubber nose.
Finish: The bolts and nuts are hot dip galvanized.
packing:Wooden boxes or sacks and wooden pallets. On average, 25kgs per package.
Spec: Base on customer drawing or specification
Application: Railway, crane or Industrial fastening
Manufacturing style: Casting or forging
Installation suggestions:
The lower component is welded on the support parallel to the axis of the rail and the upper component is fastened to it by means of the two bolts and nuts. The recommended torque is 200 Nm. Electrical and pneumatic torque wrenches are allowed as long as the minimum torque of 150 Nm is met and the torque does not exceed 250 Nm. It is recommended the torque is regularly controlled with a calibrated torque wrench. For most applications, the recommended weld throat size is 5 mm; the weld leg size is then 7 mm.
If the pad is not used, the weld along the foot of the rail must be removed. Use any low hydrogen rod suitable for use with structural steel: ISO2560 type E 42 5 B 32 H5, E7018 or equivalent. For full instructions on weld size and electrodes, refer to the data sheet “Installation and suggested weld instructions”.
Do not apply protective coating on the contact surface between upper and lower components. Do not use solvents as they may seriously damage the rubber nose.
