3-Crank Orthopedic Hospital Bed (THR-TB004)

Product Description

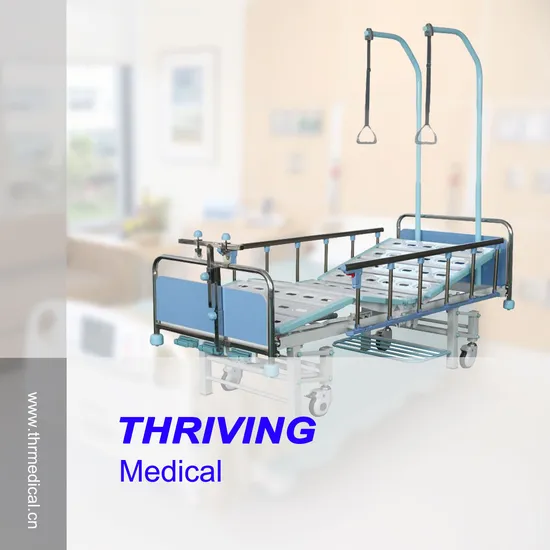

THR-TB004 3-crank Medical Manual Orthopedic Bed
Description:
1) Dimension: L2020*W900* H500-750mm
2) Bed base is made of cold-rolled steel plate and coated by electrostatic spray.
3) Aluminium alloy guard rails, retractable, easy operation.
4) Built-in cranks control back rest & leg rest upward and height function.
5) With protection rubber at the leg end.
6) With anti-bump cushion device on the bed corners for protection.
7) With oddment shelf under the bed.
8) With multi-function orthopedic traction frame, ensure traction treatment.
9) With special bed base structure:
-When it is in lowest position, 4 steel tube of bed legs grounded to floor, preventing the bed moving;
-when it is in high position, 4pcs 125mm diameter castors let the bed move easily.
Factory Show:
Our advantages: 1. Original Manufacturer, the producing workshop is more than 40000 Square Meters
2. All parts are produced by our factory
3. Strict Material Inspection & Quality Controlling
4. ISO9001, ISO13485(SGS) Quality Management System
5. More than 10 years experience in producing and engineering
6. CE (SGS) Certificate
7. Products are exported to more than 30 countrie

Function:
angle of back section upward:	0-70° (± 5° )
angle of leg section upward:	0-45° (± 5° )
height adjustable	500mm-750mm
all function are controlled by manual cranks separately.
Standard Accessories:
detachable stainless bed head & end bed board	1 pair
Foldaway side rails made of aluminium alloy	1 pair
Dia. 125mm brake castors	4 pcs
simple steel orthopaedics traction frame	2 pcs
Foldable Manual cranks	3 pcs
