Product Description
Product Description

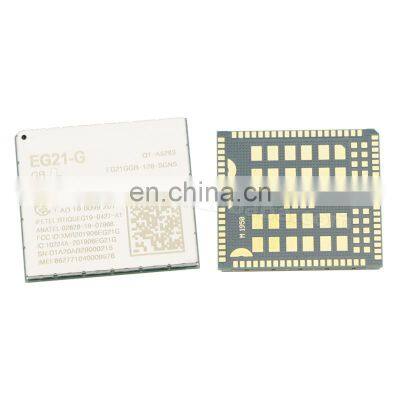

DescriptionOverviewEG21-G is an LTE Cat 1 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel.11 LTE technology, it delivers maximum data rates up to 10Mbps downlink and 5Mbps uplink. Designed in the compact and unified form factor, EG21-G is compatible with UMTS/HSPA+ UC20/UC200T modules and multi-mode LTE Standard EC2x(EC25, EC21, EC20 R2.0 and EC20 R2.1)/EG25-G modules, which allows for flexible migration among them in design and use.EG21-G is backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected even in remote areas devoid of 4G or 3G coverage.EG21-G supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning.A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows 7/8/8.1/10, Linux, Android/eCall*) extend the applicability of the module to a wide range of M2M and IoT applications such as smart metering, wearable devices, environmental monitoring, asset tracking, fleet management, security and alarm systems, and so on.Key Benefits● LTE Cat 1 module optimized for M2M and IoT applications● Worldwide LTE, UMTS/HSPA(+) and GSM/GPRS/EDGE coverage● Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment● Feature refinements: supports DFOTA, eCall* and DTMF*● MIMO technology meets demands for data rate and link reliability in modem wireless communication systems (https://www.hurryup.en.china.cn)Frequency BandsEG21-G:LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28LTE-TDD: B38/B39/B40/B41WCDMA: B1/B2/B4/B5/B6/B8/B19GSM: B2/B3/B5/B8DataLTE:LTE-FDD: Max 10Mbps (DL)/Max 5Mbps (UL)LTE-TDD: Max 8.96Mbps (DL)/Max 3.1Mbps (UL)UMTS:HSDPA: Max 42Mbps (DL)HSUPA: Max 5.76Mbps (UL)WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL)GSM:EDGE: Max 296Kbps (DL)/Max 236.8Kbps (UL)GPRS: Max 107Kbps (DL)/Max 85.6Kbps (UL)VoiceSpeech Codec Modes:HR/FR/EFR/AMR/AMR-WBEcho Arithmetic:Echo Cancellation/Noise SuppressionAudio:Digital Audio and VoLTE (Voice over LTE)(Optional)InterfacesUART × 2 : Main UART and Debug UARTUSB x 1: USB 2.0 with High Speed up to 480Mbps(U)SIM x 1: 1.8V/3.0V (U)SIM InterfacePCM x 1: Digital Audio through PCM (Optional)I2C x 1NETLIGHT × 2 (NET_STATUS and NET_MODE)ADC × 2SD Card x 1SGMII x 1RESET (Active Low)PWRKEY (Active Low)STATUSUSB_BOOTSolder Pads for Primary, Rx-diversity and GNSS AntennasEnhanced FeatureseCall*DTMF*Audio Playback*/Audio Recording*QuecFile*QuecLocator®Downlink MIMO (Supports Rx-diversity antenna)(U)SIM Card DetectionDFOTA:Delta Firmware Upgrade Over-The-AirGNSS:GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS(Optional)Software FeaturesUSB Serial Driver:Windows 7/8/8.1/10,Linux 2.6~5.4,Android 4.x/5.x/6.x/7.x/9.xGNSS Driver:Android 4.x/5.x/6.x/7.x/8.x/9.xRIL Driver:Android 4.x/5.x/6.x/7.x/8.x/9.xNDIS Driver:Windows 7/8/8.1/10GobiNet Driver:Linux 2.6~5.4QMI_WWAN Driver:Linux 2.6~5.4Protocols:TCP/UDP/PPP/FTP/HTTP/NTP/PING/QMI/NITZ/SMTP/MQTT/CMUX/HTTPS/FTPS/SMTPS/SSL/MMS*/FILE*General FeaturesOperation Temperature Range: -35°C ~ +75°CExtended Temperature Range: -40°C ~ +85°CDimensions: 29.0mm x 32.0mm x 2.4mmWeight: Approx. 4.9gLGA PackageSupply Voltage: 3.3V~4.3V, 3.8V Typ.3GPP E-UTRA Release 11Bandwidth: 1.4/3/5/10/15/20MHz3GPP TS27.007, 27.005 and Enhanced AT CommandsApprovalsCarrier:Deutsche Telekom (Europe)Verizon*/AT&T*/T-Mobile*/Sprint* (NorthAmerica)Regulatory:GCF (Global)CE (Europe)FCC/PTCRB (North America)IC (Canada)Anatel (Brazil)IFETEL (Mexico)KC* (South Korea)NCC (Taiwan, China)JATE/TELEC (Japan)RCM (Australia)ICASA* (South Africa)Others:RoHSWHQL* Under DevelopmentWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
>>
