Cardboard Thin Blade Slitter Scorer Machine for Corrugated Production Line

Product Description

NCBD thin blade slitter scorer machine
Structural features:
★Synchronous servo motor control row of knives, cable. Automatic reset. Precise dimensions. change order time 3-8 seconds, the two machines can be achieved with no slow down immediately for a single memory of 999 order, non-stop automatic change order or manual change order can be realized.
★Schneder M258PLC control system, using CANopen line system, with order management capabilities, with the dryer speed synchronous signal input.

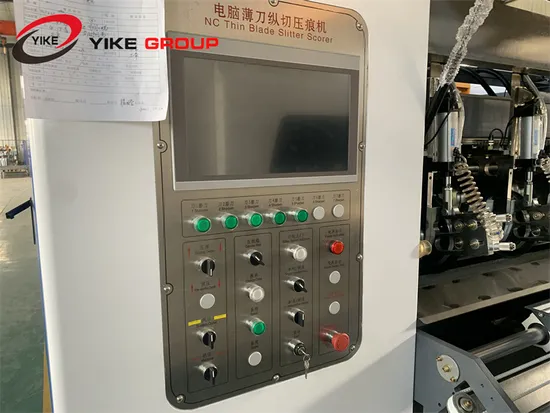

★HMI with 10.4-inch color touch screen, storage 999 orders, change orders automatically or manually for a single, fault alarm.
★Three kinds of pressure line forms: Convex against the concave(three layers line), Convex against the concave(five layers line), Convex against Flat, Three kinds of electric pressure line forms can be converted. Crimping round shades by computer control, linear, and easy to bend.
★Using thin tungsten alloy steel knife, sharp blade, long life of more than 8 million meters.
★knife sharpener for computer control, automatic or manual knife sharpener, Cutting edge sharpening can be divided, improve productivity Efficiency.
★The imported synchronous drive system, precision accurate, long life, low noise operation.
Mainly purchased parts, raw materials, and origin:

Name of main parts	Brands or place of origin	Material and type
Frequency motor	Hebei hengshui yongshun motor factory
bearing	Harbin
Seat belt bearing	Zhejiang wuhuan
relays	France Schneide
Proximity Switch.Photoelectric switch	Japan OMRON
Programmable Controllers	France Schneide
Solenoid valve	Taiwan AirTAC
HMI	France Schneide
Row knife control	France Schneide	Synchronous servo motors
Row line control	France Schneide	Synchronous servo motors
Exchange line control	France Schneide	Synchronous servo motors
Waste suction control	France Schneide	Synchronous servo motors
Left and right traverse motor	Shandong jinbuhuan reducer

---
