Factory Directly Supply Ring Dies Pellet Dies Matrix for Pellet Mill with Good Price

Product Description

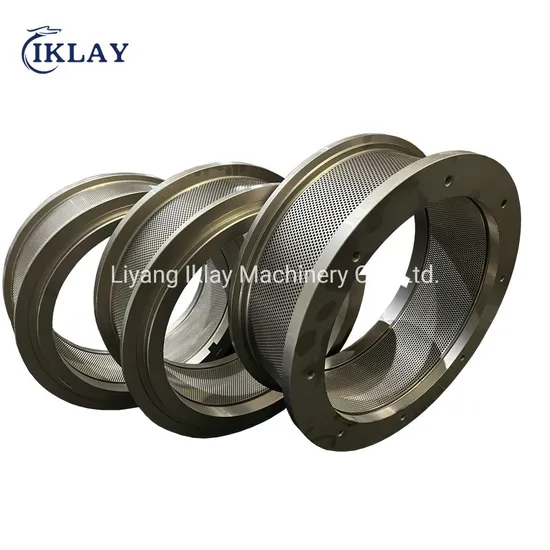

IKLAY is a professional manufacturer for ring dies/ flat dies, pellet mill matrixes, rollers, roller assemblies, spare parts for pellet mill and so on. We can customize various models PELLET DIES& ROLLERS for pellet machine, such as MZLH, SZLH(Zhengchang), SZLJ, HKJ, CPM, OGM, IDAH, Amandus Kahl, MUZL/FAMSUN, Buhler, Van Arson, PTN, Andritz PM, Shenda, Yemmak, CPP, Awila, Yulong XGJ and so on.
Product details Our ring dies/flat dies are suitable for:
1. Biomass pellet machine: wood pellet machine/ pellet mill, sawdust pellet machine, grass pellet machine, straw pellet machine, crop straw pellet machine, alfalfa pellet machine, coffee ground powder pellet mill and etc.
2. Livestock and poultry/aqua feed pellet machine: pig/cattle/sheep/chicken/duck/fish/shrimp......
3. Cat litter granulator/ pellet mill
4. Compound fertilizer

Material	Hardness	Diameter	Outer diameter
X46Cr13/4Cr13(stainless steel);20MnCr5/20CrMnTi(Alloy Steel)	HRC54-60	1.0mm-28mm	<1800mm

Here is the introduction and photos for processing ring dies. If you're interested, please do not hesitate to contact us.
1. Materials Forging/ Ring Rolling Process
---We choose China TOP1 forging factory's raw materials, usage life can be enhanced about 15%. Less impurities and high purity.
2. Rough Lathing Process (Before drilling) / Fine Lathing Process (After finished)
--- We use automatic CNC lathing machine to lathe ring dies/ flat dies.
3. Drilling Holes Process
--- All pellet mill dies are drilled by automatic CNC gun drilling machines to ensure inner holes mirror polishment, good smooth, high polished and good forming.
4. Countersinking, Drilling ScrewsK& Keyway Process
--- All ring dies are countersinked by automatic CNC countersinking machines to ensure its smooth and uniform.
5. Heat Treatment Process --- Choosing vacuum furnace processing technology to ensure long service life; Stainless steel/ SS ring die can reach HRC 54-58, Alloy steel/ AS ring die can reach HRC57-60. More wear-resistant and corrosion-resistant.
6. Quality Inspection For Each Process
--- We arrange the quality inspector to check the quailty for each process, strictly control the quality to guarantee final pellet dies are good.
7. Packing Process
--- After quality inspection is no problem, we will arrange the packing with wood boxes to make sure cargoes are in good condition during transportation.
8. More Photos for Our Pellet Dies/ Ring Dies/ Rollers which produced before
We can customize any model as long as you told us your pellet machine model, hole diameter, compression ratio, materials and size.

---
