US$16,000.00-25,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Processing Accessory
Metal
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Way Tool Post
Controlling Mode
Artificial
Certification
CE, RoHS, ISO 9001
Transport Package
Plywood Case
Production Capacity
10 PCS/Month
Product Description

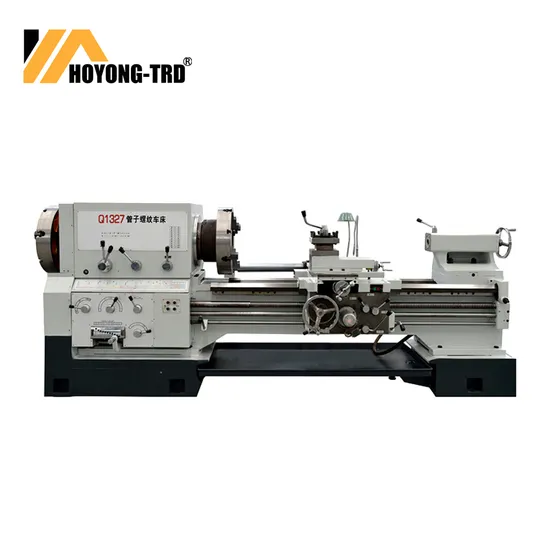

PIPE LATHE MACHINE FEATURES:
Q13 series of pipe threading lathe is mainly used for processing inner and outer pipe thread (including metric thread, inch thread etc.),
and also can undertake various turning works such as turning inner and outer cylindrical surface, and other revolution and end surface etc.
This lathe series is equipped with a taper device, which can be used for processing taper parts.
SPECIFICATIONS:
| SPECIFICATION OF YIMAKE LATHE MACHINE |
| ITEMS | UNIT | Q1322 Pipe Lathe |
| Basic | Max. Dia. swing over bed | mm | Φ630 |
| Max. Dia. swing over cross slide | mm | Φ340 |
| Distance between centers | mm | 1500 / 3000 |
| Range of threading capacity | mm | Φ50-220 |
| Width of bed way | mm | 550 |
| Main motor | kw | 11 |
| Coolant pump motor | kw | 0.125 |
| Spindle | Spindle bore | mm | Φ230 |
| Spindle speed | r/min | 12 steps: 24-300 |
| Taper bar | Max. taper processing | -- | 1:4 |
| Max. travel of taper guide bar | mm | 750 |
| Tool post | Tool post travel | mm | 200 |
| Distance between spindle center and tool post | mm | 32.5 |
| Size of tool section | mm | 30×30 |
| Max. rotation angle of tool post | ° | ±60° |
| Leadscrew | Leadscrew pitch(mm) | inch | 1/2 |
| Feed | Z axis feed | mm | 26 grade / 0.07-1.33 |
| X axis feed | mm | 22 grade / 0.02-0.45 |
| Carriage | Cross slide travel | mm | 490 |
| Carriage rapid traverse speed | mm/min | 4000 |
| Threading | Metric thread | mm | 24 grade / 1-14 |
| Inch thread | t.p.i. | 40 grade / 2-28 |
| Tailstock | Tailstock quill diameter | mm | Φ100 |
| Tailstock quill taper | mores | m5# |
| Tailstock quill travel | mm | 250 |
| Tailstock cross travel | mm | ±15 |
| Others | Dimension(L/W/H) | mm | 3657/5157×1449×1393 |
| Net weight (kg) | kg | 4440/5290 |
| Gross weight | kg | 5200/6300 |
| Accessories | Tool post | 1 set | 4 position manual turret |
| Chuck | 2 set | Φ520 three-jaw manual chuck |
| Taper device | 1 set | taper guide bar |
| Center rest | 1 set | Φ300 |
| Rear support bracket | 1 set | Φ220 |
| Package | Standard export package | 1 set | Steel pallet and plastic overclothe |
>>
