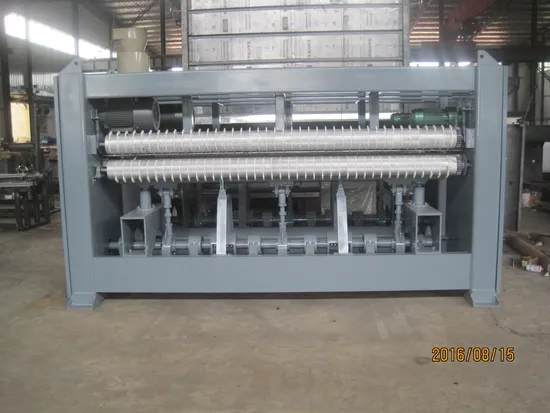

Middle Speed Needle Loom Non Woven Production Line Recycling Machine

Product Description

Non woven needle punching machine production line fabric making machinery with CE certificate
Main technical indicators of Production line
To fulfill the requirements of sample and pass the test
1.Working width: 2000-6200 mm
2.Products: all kinds of needle punching products, non-woven fabrics
3.Suitable fiber: chemical fiber, such as PET, PP specification: 1.5 ~ 6 d length of 31 ~ 51 mm polyester staple fiber and ES low melting point fiber, glass fiber, aramid fiber, etc.
4.Product specifications: 80 ~ 1000 g / m2 (1 layer)
5.Production capacity: carding machine output by 220 kg/h (6 d common assessment of chemical fiber as raw materials)
6.Total installed power: about 170 kw (actual use about 120 kw under normal)

NO.	ITEM	DESCRIPTION OF GM360 NEEDLE PUNCHING MACHINE
1	Model	GMZ-360M ↓/↑
2	Dimension of M/C	L4570W1600H2425(mm)
3	Weight	9050kgs/9350kgs
4	Total power	22kw
5	Main motor	15KW; 3 phase AC power 50Hz/
6	Needle density	Depend on the customer's requirements
7	The average output	360kg/hour(Working at width 2500mm&300g/m2 under running normal)
8	Protection	Main motor overload protection
9	The control mode	Constant power & Inverter control
10	Working width	3600mm
11	Needle plate	High-strength aluminum alloy
12	Bearing	KOYO/Or according to the customer's requirements
13	Type of holes	Diameter1.83mm/An inverted cone
18	Trip of needle	60 mm /40mm/40mm
19	Transfer roller	Diameter:168mm/ Chromium plating process/high quality 50# steel
20	Needle plate	High strength alloys and shock shape /totally 18 mm thickness
21	The main shaft & other work shaft	Diameter: 80mm/ Dynamic balance and strength strengthening heat treatment/high quality steel
22	Print Color	Following customer's requirements
23	The control cabinet and panel	Digital display instrument, and equipped with knob regulator, professional electric schematic diagram
24	Note	Direction:↓first then ↑/The round-trip distance of the needle can be adaptive adjustment according to the thickness of the raw materials.

Adopt CNC gantry milling machine with good stability, high precision and high finish Automatic oil injection system,good for machine lubrication and maintenance Cagnesium alloy/PU combined needle board locked firmly by lock-bolt or air tube; multi random computer needling methods for needle board Chrome plated delivery rollers with carved or patterned surface About our Company,

---
