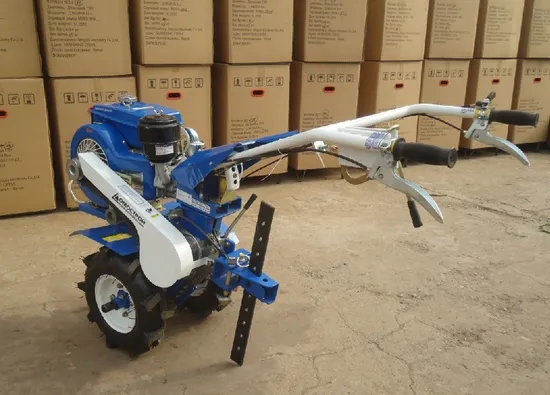

4HP 170f Diesel Engine Power Tiller/Cultivator Gt-4 (MD-4)

Product Description

Product Description
GT-4 tiller works in both pulling and driving type. It is mainly suitable for using in narrow land, terraced fields in mountain area, vegetable garden, orchard and greenhouse. It features compact construction, easy and flexible handling, light weight, reliable operation, convenient maintenance as well as good trafficability.
1. Its small-size, light-weight. Its horse power is strong and useful. Especially, it applies in narrow sections, terrace of mountain area, tea plantation, fruit woods, sheds and so on.
2. Lighted clutch, it also can work as over-load clutch. It can protect over load and use safely.
3. The handles can turn 360° Horizontally and regulate tap and down with four grades.
4. Its necessary farm machineries are all in readiness. With corresponding machineries, it can realize many functions, such as weeding. Breaking soil, making furrows, hilling soil, irrigating, spraying pesticide, ploughing.
5. Because the main enginer and vice enginer take fission quick link mechanism. It is very easy to adjust them.
6. The track and plough knife can be alternated breaclth with requirement.

Product Parameters

Model	Unit	GT-4 (MD-4)
Overall dimensions (L*W*H)	mm	1570*600*980
PTO speed	r/min.	1511
Overall dimensions (L*W*H)	mm	1000x400x970
Net weight	kg	115
Gross weight (with packing)	kg	125
Max. tilling width	mm	840
Max. tilling depth	mm	18
Clutch		Tension pulley
Driving wheel		4.00-7
Ground clearance	mm	85
Wheel tread	mm	350-600 (adjustable)
Tyre inflation pressure	kPa	100-120 (in the field) 160-180 (for transportation)
Transmission		(1+1) × 2 compound type with spur gears
Speed	km/h.	(I) 4.457, (II) 7.485, (RI )3.13, (RII) 5.307
Main drive		Two pcs V-belt (B1270)
Transmission oil capacity	L	1.5
Working speed	m/s	0.25
Rotary speed of driving shaft	r/min.	85 (high spped)/50 (low speed)
Trailer rated load	kg	300
Engine	Model	170F
Engine type		Water cooled, 4-stroke, single cylinder, horizontal.
Max. output	hp	4.4
Max. fuel consumption	g/kw. h	289.7
Rotary speed of engine	r/min.	2600
