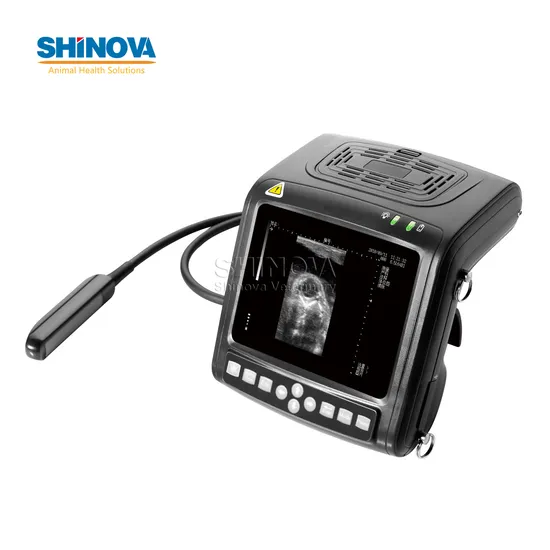

Handheld Veterinary Ultrasound (SonoScan W1)

Product Description

Wrist Veterinary Ultrasound
model: SonoScan W1
Product Description

Descriptions 1)1.1kg ( 2.4 lbs)
2)Rechargeable Battery Life of 200 minutes
3)5.7" LCD Display
4)100 images built-in storage
5)Freeze image switch with free hand
6)256 Frames Cine
7)USB Port for Flash Card Memory
8)8 Stages of Magnification
9)Concise Menu for Operation
10)Good Brightness for Outdoor Scanning
11)Wrist Mount and Belt-hanger( for holding probes)Available

Product Parameters

Specifications 1. Technology: All-digital imaging technology, full digital beam forming, excellent image quality with high resolution and high penetration.
2. Scanning methods: Electronic convex/electronic linear/electronic micro-convex.
3. Scanning technology: Real-time dynamic imaging, harmonic imaging.
4. Probe: Multi-frequency probe series.
5. No. Of probe connectors: 1.
6. Monitor: 5.7high resolution non-interlaced SVGA display.
7. Keyboard: Ergonomic keyboard.
8. Gray scale: 256 levels.
9. Display modes: B, B/B, B/M, M, or 4B.
10. Speed in M mode: 1s, 2s, 3s, 4s, 5s, 6s, 7s and 8s.
11. Magnification: *0.8, *1.0, *1.2, *1.5, *1.6, *2.0, *2.4 and*3.0.
12. Focusing methods: Single-poin, multi-stage transmitting, dynamic focusing
13. CINE loop: 256-frame.
14. Zoom: Intelligent local zoom in real-time and frozen mode.
15. Image storage and transfter: Built-in 100-frame image storage, USB Image transfer, Ultrasound working station.
16. Image Processing: Depth enhancement/pan function, Left/right, positive/negative, vertical, horizontal flip and B/W conversion, Angle change, Image freeze/unfreeze, Gamma correction, EDGE enhancement for image after-processing, gray transformation, gray rejection etc, Frame correlation function, Adjustment and display of near field, far field, total gain and dynamic range, Pre-processing: IP selection, dynamic range, EDGE enhancement, smooth, frame averaging, scanning angle selection, line density selection etc.
17. Measurements: B mode: Distance, circumference, area, volume, ratio, angle, % stenosis, histogram, profile etc, M mode: Distance, time, velocity, heart rate etc, General software packages for Abdomen, OB/GYN, Small parts, Urology, Cardiology etc, Obstetric package including 10 tables, automatic calculation of EDD, BPD, GS, CRL, FL, HC, AD, AC, GA, FW and fetus weight, 4 veterinary body marks.
18. Report: Obstetric report.
19. Documentation: Full screen documentation, hospital name, Patient name, date/time.
20. Power Supply: AC 100-240V~, 50-60Hz.
21. Power consumption: ≤ 40VA.
22. Others: 8 kinds Pseudo-color, Energy-saving, PAL-NTSC switchable.
