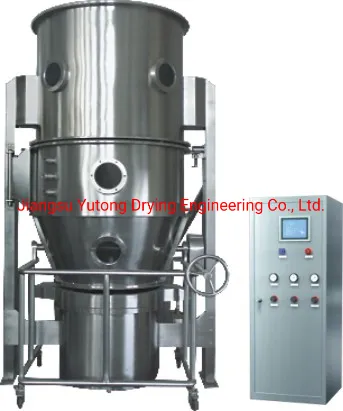

Fluid Bed Dryer and Granulator

Product Description

Product Description Milk Powder Coffee Juice Fluidized Granulator Working Principles
The powdery materials is in fluidizing state in the container. It is first heated and mixed by filtered hot air. Then the powder combines with atomizing adhesive solution. After that, the prototype of granule is formed.The moisture in granules is evaporated, as hot air constantly heats the granules. The adhesive is also solidified in the process of drying. The repeated drying process finally contributes to the microporous spherical granules.
Applications
The fluidized drying granulator can be used to make tables, instant herbal medicine and capsule in pharmaceutical industry, cocoa, coffee, milk powder, fruit granules and flavoring in food industry, and agricultural pesticide, feedstuff, fertilizers, pigments and dyestuff in other industries. It is also suitable for drying of wet powder materials or wet particles.
Features
1. Granules made by our fluidized drying granulator have good dissolvability and fluidity. So there is no dust pollution.
2. It has functions of mixing, drying and granulation.
3. Anti-static electricity filter cloth is adopted to make the fluidized drying granulator safe to use.
4. Pressure bleeder hole is designed for security.
5. It features easy charging and discharging of materials, and it is also easy to clean.
6. Our fluidized drying granulator conforms to the standards of GMP.
Technical Parameters of Fluidized Drying Granulator

Model		FL-3	FL-5	FL-15	FL-30	FL-60	FL-120	FL-200	FL-300	FL-500
Container	Volume (L)	12	22	45	100	220	120	670	1000	1500
	Diameter (mm)	300	400	550	700	1000	1200	1400	1600	1800
Productive Capacity	Min. (kg)	1.5	4	10	15	30	80	100	150	200
	Max. (kg)	4.5	6	20	45	90	160	300	450	750
Fan	Air Volume (m3/h)	1000	1200	1400	1800	3000	4500	6000	7000	8000
	Power (kw)	3	4	5.5	7.5	11	18.5	22	30	45
Stream Consumption (kg/h)		15	23	42	70	141	221	282	366	451
Compressed Air Consumption (m3/h)		0.9	0.9	0.9	0.9	1.0	1.0	1..1	1.5	1.5
Weight of Main Body (kg)		500	700	900	1000	1100	1300	1500	1800	2000
Pressure of Stream (Mpa)		0.3-0.6
Temperature (ºC)		Adjustable from room temperature to 120ºC
Working Time (min)		According the characteristic of material from 45 to 90
Rate of Obtaining Products (%)		>=99
Noise (Db) (A)		Fan is separated with main machine, the noise is less than 75dB
Overall Size (L×W×H) (m)		1.0×0.6 ×2.1	1.2×0.7 ×2.1	1.25×0.9 ×2.5	1.6×1.1 ×2.5	1.85×1.4 ×3	2.2×1.65 ×3.3	2.34×1.7 ×3.8	2.8×2.0 ×4.0	3×2.25 ×4.4

Company introduction :JIANGSU YUTONG DRYING ENGINEERING CO.,LTD
Jiangsu Yutong Drying Engineering Company is a High-New Technology Enterprise in China. With over 21 years of experience, we are able to provide a wide variety of products, including drying machine, grinding machine, granulator, mixing machine, and more. Features like compact structure, high efficiency, and low energy consumption have resulted in our products being increasingly used in the pharmaceutical, chemical, food, light industry, dyes, mineral products, electronics, ceramics, plastics, agricultural products, pesticides, feed, fertilizers, and other industries.
Yutong Patent
CERTIFICATE
Package:wooden case
Pre-service
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;
Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents meet customer`s requirements.
After-sale service
Provide considerate services to minimize clients` worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.
Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;

---
