Good Reputation Centrifugal Hydroextractor Dewatering Machine

Product Description

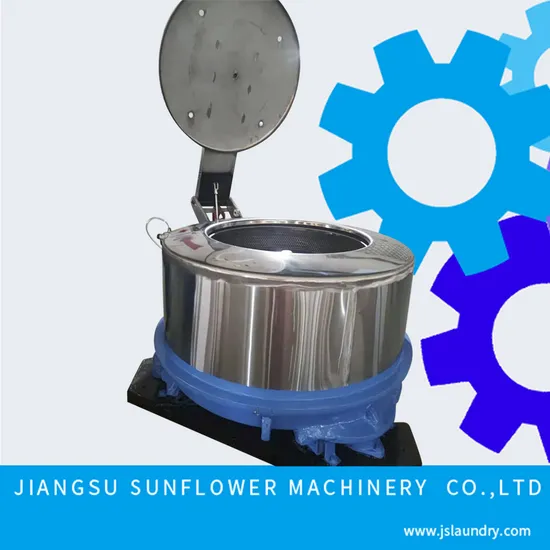

Good reputation centrifugal hydroextractor dewatering machine
This hydro extractor is to do water extracting job after the fabric is washed
Features:
1.The drum of this machine is made of stainless steel
2.Independent three legs suspended instruction can avoid shock caused by unbalanced loaded.
3.The extracting speed of this machine is from 1000 rpm to 750rpm
4.The spinning machine will make the material inside dried by its high Centrifugal speed
5.The capacity of this hydro extractor series can be 40kg 60kg 90kg 120kg 210kg
6.Equipped with special brake arms which is durable and reliable make the machine more safe.
7.The motor will start with slow speed and reach supposed speed gradually, the drum will be driven by triangle rubber belt, running smooth and synchronous.
Specification A : Rubber Belt Driven Type Hydro Extractor Machine

model	motor power	drum dimension	overall dimension(mm)	weight (KG)
TL500 (50kg)	1.5KW	Φ 500	Φ 950*600	300
TL600 (60kg )	2.2KW	Φ 600	Φ 1220*700	500
TL800 (90kg)	4KW	Φ 800	Φ 1720*840	800
TL1000(120kg)	5.5KW	Φ 1000	Φ 1830*840	1400
TL1200 (210kg)	7.5KW	Φ 1200	Φ 2100*1050	1800
TL1500(350kg)	8KW	Φ 1500	Φ 2550*1400	2100
TL1800(650kg)	12KW	Φ 1800	Φ 2700*1560	2300

Specification B : Motor Directly Driven Type Hydro Extractor With Invert Controller

MODEL	MOTOR POWER	Invent Power	DRUM DIMENSION mm	THE BIGGEST CAPACITY kg	OVER ALL SIZE mm	NET WEIGHT kg
SME301-1000	5.5kw	5.5kw	1000mm*450	200kgs	1400*850	1500
SME301-1200	7.5	7.5 kw	Ф1200×550	300	Ф1800×900	2200
SME301-1500	10	11kw	Ф1500×680	550	2550×1950×2400	2800
SME301-1800	12	15kw	Ф1800×760	900	3100×2450×2800	3400
SME-2000	18.5KW	18.5KW	Ф2000*900	1100kgs	3600*2970*1500	4000

For more useful information,please don't hesitate to contact us.We are looking forward to build a long relationship with you!
Contact Person:Ms Sun
Service System
Pre-Sale Service
Before the order is confirmed, we will provide free laundry layout and all the consultation about the product.

Sale Service
1). In-depth Design
When the order is confirmed, we will communicate with the professional staff from the buyer's part and discuss the in-depth drawing design. Besides, we will provide the whole laundry factory layout design for free. The design scheme will be including equipment installation drawing about foundation, water inlet, drainage, air input and output, compressed air and electricity.

2). Installation
All the machines are well tested before we delivery the machines to the operator
When the equipment arrive to the buyer, we will send our technical staffs to provide field installation guidance and any other necessary help to ensure proper and standard installation.

3). Testing
After installation, our staff will help our customer to test the machine and check all the technical index, function, specification of the machine. Also we will comprehensively eliminate all the possible human-caused damage or troubles during installation to make sure the machine will operate in its best condition.

4). Operation Training
Before the machine is put into use, we will provide operation training to ensure the operators from the buyer's part can work independently. The training includes proper operation, safe startup, smooth operation, proper washing, linen check and categorization and machine maintenance. Also we will help operators to learn the right way to save water, energy and emergent stop operation.

.

After-Sale Service
1)
Full set of Installation and Operation Manual will be sent together with the machines ,and we are also able to offer online instructure
Operation Video will also be sent together with the machines
2) If you need we are able to send engineer to the work site to help you to train the operator and also to instruct the installation
Please feel free to contact us Contact Person :Ms Sun

---
