Portable Handheld Power Quality Analyzer Price Low Electrical Energy Quality Monitoring Instrument

Product Description

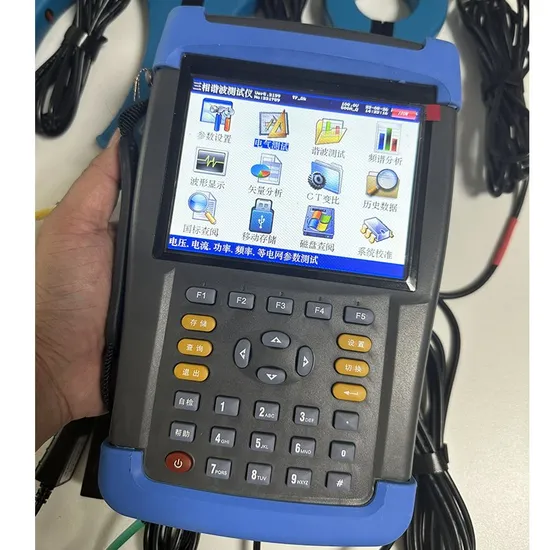

Portable Handheld Power Quality Analyzer
Price Low Electrical Energy Quality Monitoring Instrument
Background Introduction
In the current electric power application, the faults arising from large power equipment and complex power grid system are becoming more and more complicated and difficult to investigate. The development of various industries and the power quality of the power grid put forward more and more high requirements, we have carefully developed a three-phase, multi-functional, intelligent, simple man-machine operation for the field test of the integrated test instrument. The instrument can be more quickly and accurately troubleshooting power system, more comprehensive and systematic monitoring and maintenance of power quality parameters measurement and analysis.
Product Functions

Real-time waveform display (4-channel voltage/4-channel current) Voltage and current true RMS Voltage DC component Current and voltage peak values Current and voltage half-cycle RMS max/min values Phase diagram display Measurement of harmonics in each phase up to the 50th harmonic Bar graph display of harmonic content for each phase of current and voltage Total Harmonic Distortion (THD) Active/reactive/apparent power values and total values for each phase Active/reactive/apparent power value and total value for each phase Transformer K-factor Power factor (PF) and COSφ Displacement power factor (DPF) Short-term voltage flicker Three-phase unbalance (voltage and current)

Main Parameters

Power supply	Rechargeable lithium battery pack 9.6V, external charger. 40-70Hz
Power Consumption	Current consumption 490mA, battery fully charged about 8 hours of continuous operation.
Display mode	LCD colour screen, 640*480dots, 5.6 inch, display area 116*88mm.
Jaw size	008B pointed small-shaped current clamp: 7.5* 13mm; 040B round mouth-shaped current clamp: 35*40mm; 068B round mouth-shaped current clamp: 68*68mm; 300F Flexible coil current sensor (with integrator): Φ300mm.
Current	008B current clamp: 10mA~10.0A; 040B current clamp: 0.10A~100A; 068B current clamp: 1.0A~1000A; 300F flexible coil current sensor (with integrator) 10A~3000A
Number of channels	4-channel voltage, 4-channel current. Line voltage 1.0V~2000V. Phase voltage 1.0V~1000V.
Electric quantity parameters	W, VA, Var, PF, DPF, cosφ, tanφ
Energy parameters	Wh, Varh, Vah
Number of transient recordings	150
Screenshot capacity	60
Instrument size	240*170*68 mm
Weight	Main unit: 1.6kg (with battery); 008B pointed small-shaped current clamp: 170g × 4; 040B round mouth-shaped current clamp: 190g × 4; 068B Round-ported current clamp: 510g×4; 300F Flexible coil current sensor (with integrator): 330g × 4; Test cable and power adapter: 900g; Total weight: approx. 9.2kg (including packaging).
Voltage test lead	3m
Current clamp line length	2m
Test voltage input impedance	1MΩ
Voltage withstand	The instrument line and the shell withstand 3700V/50Hz sine wave AC voltage for 1 minute.
Insulation	≥ 10MΩ between the instrument line and the sheath enclosure.
Suitable for safety regulations	IEC 61010 1000V Cat III / 600V CAT IV, IEC 61010-031, IEC 61326, pollution class 2

---
