Ecnomical Small Scale Flour Mill Machine

Product Description

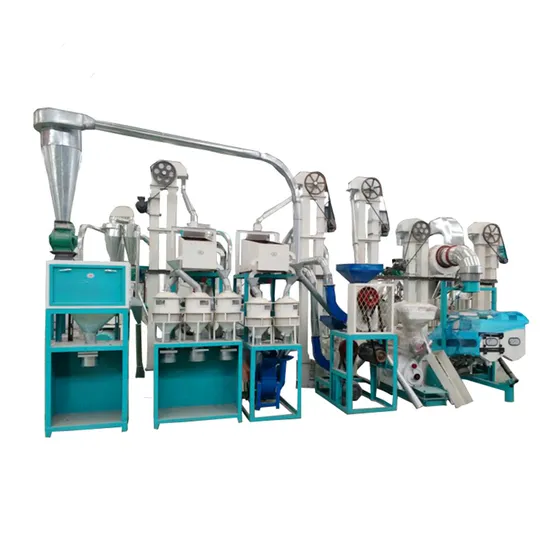

Ecnomical small scale flour mill machine
1. Cleaning part
to clean out the middle and small impurity from wheat. e.g., dust, stone, magnetic material, wheat was bitten by insect and so on.Includes beating, screening, destoner, magnetic separator and dampening. This section is to prepare for milling part and to protect the machinery as well.

2. Milling part
The second step, to mill the grain and separate the flour, bran and other by-product:
(1) Mill: mill the grain to break the integrity by the roller moving
(2) Sifter: to separate the flour, bran and other by-product, also separate large size and small size to ensure flour quality.

3. Packing part
The third step, the packing machine can be manual or automatic weighting and packing.

No.	Picture	Description	Qty	Power (kw)	Note
		Name:Bucket elevator Model:TDTG20/10 Power:1.1kw Material:Carbon steelQ235	3sets	3.3
		Name:Magnet separator Model:TCXT20 Material:Carbon steelQ235	1set
		Name:Cyclone seperator Model:TCXT20 Material:Carbon steelQ235	1set
		Name:Combined sifting and de-stoning machine Model:120 Power:0.25×2kw Material:Carbon steelQ235	1set	0.5
		Name:Quadruple filter Model:550 Material:Carbon steelQ235	1set
		Name:Spray water machine Model:TFSH	1set
		Name:Maize peeling machine Model:NF15A Power:15kw Material:Carbon steelQ235	1set	15
		Name:Maize grinder Model:36 Power:7.5kw Material:Carbon steelQ235	1set	7.5
		Name:Low pressure blower Model:4-72-4.5A Power:7.5kw Material:Carbon steelQ235	1set	7.5
		Name:High pressure blower Model:6-30# Power:2.2kw Material:Carbon steelQ235	1sets	2.2
		Grain silo	1set
		Name:Roller mill Model:6F2250 Power:11kw Material:Carbon steelQ235	1set	11
		Name:Roller mill Model:6F2240 Power:7.5kw Material:Carbon steelQ235	2sets	15
		Name:Plan sifter Model:FSFS83×83 Power:1.5kw Material:Carbon steelQ235	1set	1.5
		Auto packing machine	1set
		Name:Brush machine Model:40×100 Power:1.5 Material:Carbon steelQ235	1set	1.5
		Name:High pressure blower Model:6-30# Power:7.5kw Material:Carbon steelQ235	1sets	7.5
		Name:Air seal Model:225 Material:Carbon steelQ235	10sets
		Name:Cyclone Model:500	1set
		Name:Cyclone Model:400	2sets
		Name:Cyclone Model:300	9sets
		Name:Roller frame Model:6F2250	1set
		Name:Roller frame Model:6F2240	2sets
		Name:Reducer Power:1.1kw	1set	1.1
		Name:Reducer Power:0.75kw	1set	0.75
		Cloth duster	1set
		Packing olatform	1set
		Air channel	1set
		Other attachments	1set
	Total Power:74.35(kw)

---
