High Precision CNC Milling Machine Milling Boring Drilling Tapping Machine 3 Axis Machining Center

Product Description

Company Profile
* * 24-hour online service at any time
* * 24-month warranty
* * Support ODM OEM
* * Provide free workpiece processing test
* * Provide a full range of solutions for machining projects
* * Pass strict quality control and multiple testing processes
* * Trade with customers in more than 150 countries around the world
* * Can complete customs clearance procedures in various countries and provide customs clearance information
Product Description

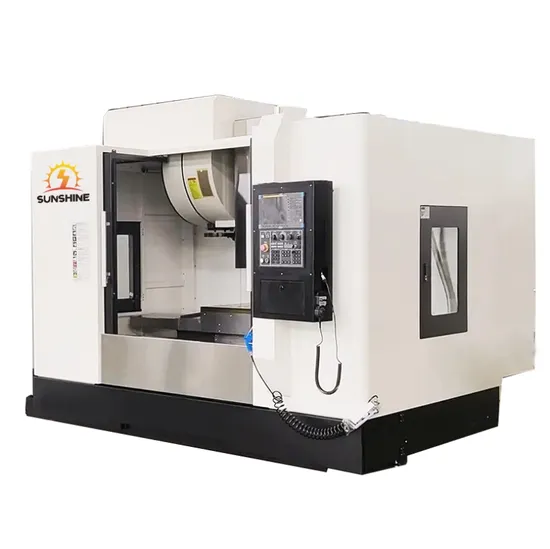

VMC1160
High precision CNC milling machine milling boring drilling tapping machine 3 axis machining center
CNC vertical milling machines are widely used.
Precision parts for aerospace, medical equipment, mold manufacturing, etc.;
Milling of special-shaped workpieces such as new energy vehicles and auto parts;
Specific processing includes gearboxes, clutch housings, engine cylinders, crankshafts, gearboxes, transmission gears, discs, pulleys and other parts.



Product Parameters

Specifications	unit	VMC1160	VMC1370	VMC1580
Table size	mm	1200x600	1500x700	1700x800
Table maximum load	kg	1000	900	1500
X/Y/Z axis travel X/Y/Z	mm	1100x600x600	1300x700x700	1500x800x700
Distance between spindle centerand column	mm	650	752	871
Distance between spindle endface and worktable surface	mm	120-720	150-850	150-900
X/Y/Z Max. feed speed X/Y/Z	mm/min	10000	8000	10000
X/Y/Z Max. Rapid traverse X/Y/Z	m/min	32/32/30	20/20/15	20/20/16
spindle speed	r/min	8000	8000	8000
spindle taper	type	BT40	BT40	BT50
Spindle motor power	kW	11/15	11/15	15/18
X/Y/Z axis servo motor power X/Y/Z	kW	4/4/5	4/4/5	4.5/4.5/4.5
X/Y/Z motor connection X/Y/Z		Direct	Direct	Direct
X/Y/Z Guide way type X//Z		third line	Two lines and one hard line	Two lines and one hard line
T slot T	mm	5-18x100	5-18x145	5-22x145
Repeat positioning accuracy	mm	±0.005	±0.005	±0.005
Tool magazine		disc type	disc type	disc type
Tool capacity		24T	24T	24T
Maximum tool weight	kg	8	8	15
Max. tool length	mm	300	300	300
Electric capacity	kVA	18	22	30
Machine dimension(LxWxH) (xx)	mm	3100x2490x2380	3600x3000x2700	4260x3545x3200
Net.weight (about) ()	kg	7000	11000	12000
Standard configuration	GSK CNC system GSK Three axes use Taiwan guide rails Tool magazine uses servo ATC tool changer or dual servo ATC Fully enclosed processing area
Optional	CNC system FANUC, SIEMENS, HNC FANUC,SIEMENS,HNC Three-axis HEIDENHAIN linear scale HEIDENHAIN Fourth axis motor, amplifier , Automation cell with articulated arm robot Automation cell with truss manipulator Chain plate chip conveyor (including hopper) () Scraper type chip conveyor (including hopper) ()

Optional
Standard configuration
1.GSK CNC system
2. Three axes use Taiwan guide rails
3. Tool magazine uses servo ATC tool changer or dual servo
4. Fully enclosed processing area
Optional
1. CNC system FANUC, SIEMENS, HNC
2. Three-axis HEIDENHAIN linear scale
3. Fourth axis motor, amplifier
4. Automation cell with articulated arm robot
5. Automation cell with truss manipulator
6. Chain plate chip conveyor (including hopper)
7. Scraper type chip conveyor (including hopper)

Detailed Photos
CNC system
CNC systems are mainly used for precise motion control and process adjustment to improve production efficiency, and real-time status monitoring and feedback.
Tool magazine
The tool magazine mainly provides a location for storing tools, and can correctly select and position the tools according to program control for tool exchange; the tool changing mechanism executes the tool exchange action.
Linear guides
The friction resistance of the linear guides in the machining center is rolling friction, which is very low, so the positioning accuracy and repeatability can be guaranteed even during rapid movement. Taiwan brand roller linear guides are used, and the rollers and guides are in line-surface rolling contact, which has higher rigidity and load-bearing capacity than ball guides.
Workbench
The worktable of the machining center is usually made of high-strength materials, such as high-quality cast iron or welded parts, and is treated with aging and secondary tempering to eliminate internal stress and ensure stable processing of the workpiece. This design enables the worktable to withstand greater cutting forces and workpiece weight, ensuring stability during processing.

Packaging & Shipping

FAQ
Q1: Can it be installed and debugged overseas?
A: Yes, we will arrive at the customer's site as soon as possible to install and debug.
Q2: Which countries have your equipment been exported to?
A: Our products are exported to many countries and regions including Russia, Australia, Vietnam, India, Algeria, Bangladesh, Saudi Arabia, Nigeria, South Africa, etc.
Q3: Are you a manufactuer or trading company?
A: We are manufacturers.
Q4: Are you in stock?
A: It is in stock, depending on which model of equipment you choose.
Q5: Can it be customized for us upon request?
A: Yes, we have a professional technical team to meet your needs.
Q6: What about the lead time for mass production?
A: The time will be determined according to the quantity of the specific ordered products.
Q7: How long will it take to ship?
A: About 30-60 days, the specific time is subject to the actual situation.
Q8: Packaging & Shipping:
A: Packed in wooden cases and transported by shipping.
Q9: What field is the product used in?
A: The company's products are widely used in processing fields such as automobiles, aerospace, molds, and machinery manufacturing.
Q10: About the price?
A: All products are sold directly by the manufacturer. They are produced in our own factory, eliminating the middlemen and are delivered directly to customers. The quality is guaranteed and the specific price is subject to the actual quotation.

---
