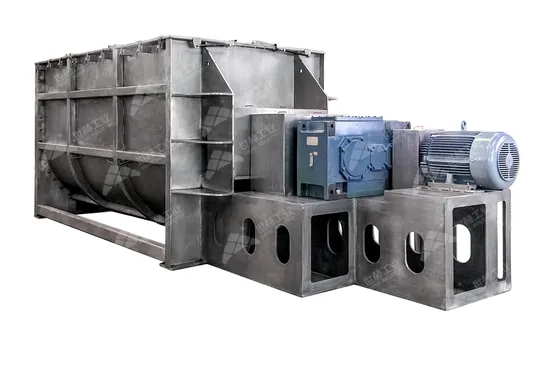

Large 15000L Spice Flavor Powder Mixer Stainless Steel Blender Horizontal Ribbon Mixer

Product Description

Product Description
Horizontal Ribbon Mixer is a late-model mixing equipment with high efficiency, high uniformity, high loading coefficient but low energy cost, low pollution and low crush. The special design of double ribbon mixer the materials into high uniformity in a few minutes. On the other hand, ribbon mixer shows a wide application from powder mixing, powder-liquid, to paste or materials in high specific gravity (such as putty, really stone paint, metal powder and other materials) and becomes one of the most popular single shaft horizontal mixing equipment.
SMALL BATCH HORIZONTAL RIBBON MIXER
100L- 500 Design volume
Can be customized with support legs and stairs;With removable hopper for finished product store.LARGE CAPACITY HORIZONTAL RIBBON MIXER
6000 -30000L Design volume
All stainless steel materials mixer,used in food industry;Raw materials feeding machine and finished product packing machines available Product Parameters

Model	Power (kw)	Speed	Thickness	Capacity	Size			Weight
		(rpm)	(mm)	(L)	Length	Width	Height	(kg)
SHLD-0.1	3	60	4	30-60	1500	500	700	400
SHLD-0.2	4	60	4	60-120	2000	600	900	600
SHLD-0.3	5.5	41	4	90-180	2000	700	1000	800
SHLD -0.5	7.5	41	5	150-300	2500	800	1400	1200
SHLD -1	11	33	5	300-600	2700	1000	1450	1800
SHLD -2	15	33	5	600-1200	3400	1200	1700	2300
SHLD -3	18.5	33	6	900-1800	3800	1300	1950	3200
SHLD -4	22	26	6	1200-2400	4100	1400	2000	4000
SHLD -5	30	26	6	1500-3000	4200	1500	2000	4500
SHLD -6	37	26	6	1800-3600	4500	1700	2100	6000
SHLD -8	45	20	6	2400-4800	5000	1800	2200	7000
SHLD -10	55	20	8	3000-6000	5000	1900	2500	8000
SHLD -15	90	20	8	4500-9000	6500	2100	2800	9800
SHLD -20	110	18	8	6000-12000	7500	2400	3000	13000
SHLD -30	132	16	10	9000-18000	9000	2600	3500	18000

Detailed Photos
Certifications
Company ProfileSIEHE GROUP established in year 2009, start with liquid machine manufacturing. After more than ten years of efforts, SIEHE Group has developed into large-scale machinery industry group company. lts headquarter is located in Honggiao, Shanghai, China. lts production bases are in Jinshan, Shanghai,Wuxi and Yangzhou in Jiangsu, with a total plant area around 32000m2. The production bases are equipped with more than 160 sets of advanced production processing and testing equipment including: turning and miling center, large gantry five- axis machining center, horizontal five-axis boring and miling machining center, Vertical five axis machining center, vertical CNC lathe machining center, trilinear coordinates precision measuring instrument, image measuring instrument precision altimeter etc.. With strong production and quality control capacity, SIEHE group carries out product design, processing,assembly and testing in full accordance with the lSO9001 quality management system, and has passed professional institution certification.
Production Equipment
Five-axis Gantry Machining Center Turning and Milling Center CNC Boring and Milling Machining Center
CNC Vertical Lathe Vertical Machining Center CNC Five-axis Gantry Machining Center
Customer Photos
FAQ1,Payment terms?
A1 L/C, T/T, D/P,cash, ****** trade assurance;
2,Trade terms?
A2 In according with Incoterms 2010, normally with EXW, FOB Shanghai, CFR, CIP CIF and DDU;
3,Validity of quotation?
A3 Within 30 days;
4,Modes of shipment?
A4 By sea, by railway, by air and by express;
5,Warranty?
A5 One year and lifelong service provided at cost;
6,Installation & Commissioning & Training?
A6 For single set of machine, usu. tel or mail guidance for installation;For production line, paid overseas engineering service provided to customers'factory for installation and debugging, as well as training the worker to use the production line.

---
