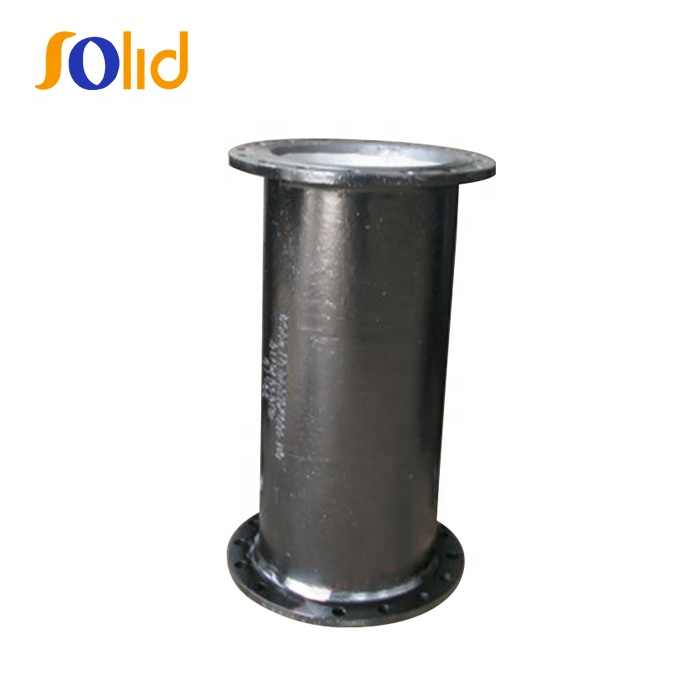

ISO2531/En545/En598 Ductile Iron Pipe Fittings Double Flanged Short Pipe

Product Details

Product Description

Product Description
Product Description
1. Briefs :
* mainly used for transferring the drinkable water, waste water and for irrigation
* working pressure PN16
* Standard: ISO2531, BS EN545/EN598, AWWA C110/C153
2. Surface treament :
Metallic zinc spray with Bituminous Coating (Outside)
Cement mortar lining (Inside).
Epoxy power coating available upon your request.
3. Dimension Sheet :

S/N	DN	Barrel				Flange mass
		K=12		K=14		Integral flange			Screwed-on or weld on flanges
		T	Mass/m	T	Mass/m	PN10	PN16	PN25	PN10	PN16	PN25
1	80	7.0	14.1	8.1	16.1	2.9	2.9	2.9	3.5	3.5	3.5
2	100	7.2	17.7	8.4	20.4	3.3	3.3	3.8	4.0	4.0	4.5
3	125	7.5	22.7	8.8	26.4	4.0	4.0	4.6	5.0	5.0	5.6
4	150	7.8	28.0	9.1	32.4	4.9	4.9	5.9	6.1	6.1	7.1
5	200	8.4	39.7	9.8	46.1	6.8	6.6	8.7	8.5	8.3	10.4
6	250	9.0	52.8	10.5	61.3	9.6	9.2	13.1	11.8	11.4	15.3
7	300	9.6	67.3	11.2	78.1	12.8	12.4	18.0	15.6	15.2	20.8
8	350	10.2	83.1	11.9	96.5	14.1	17.2	25.5	19.0	20.7	29.0
9	400	10.8	100.0	12.6	116.2	16.3	21.9	33.2	23.0	26.1	37.4
10	450	11.4	118.3	13.3	137.5	18.1	26.7	42.2	25.0	32.7	43.0
11	500	12.0	138.2	14.0	160.6	21.8	37.0	48.7	29.0	42.8	54.5
12	600	13.2	181.8	15.4	211.3	30.8	57.3	71.5	40.0	64.9	79.1
13	700	14.4	230.8	16.8	268.4	40.5	55.6	90.3	54.0	65.3	-
14	800	15.6	285.5	18.2	332.1	54.8	74.0	123.0	72.0	85.9	-
15	900	16.8	345.4	19.6	401.7	64.3	88.2	149.0	85.0	102.6	-
16	1000	18.0	410.6	21.0	477.7	81.4	123.0	201.0	111.0	145.0	-
17	1100	19.2	481.7	22.4	560.4	105.0	141.0	224.0	131.0	164.0	-
18	1200	20.4	557.7	23.8	649.0	121.0	185.0	285.0	160.0	211.0	-
19	1400	22.8	726.8	26.6	845.7	148.0	216.0	368.0	212.0	264.0	-
20	1500	24.0	819.1	28.0	953.2	201.4	289.3	-	243.0	326.0	-
21	1600	25.2	916.9	29.4	1067.0	206.0	308.0	486.0	288.0	369.0	-
22	1800	27.6	1129.3	32.2	1314.2	236.3	362.2	601.9	337.0	435.0	-
23	2000	30.0	1363.4	35.0	1586.8	279.4	432.2	784.9	390.0	507.0	-
