CNC Log Cutting Vertical Band Saw Machine Multi Blades Bandsaw

Product Description

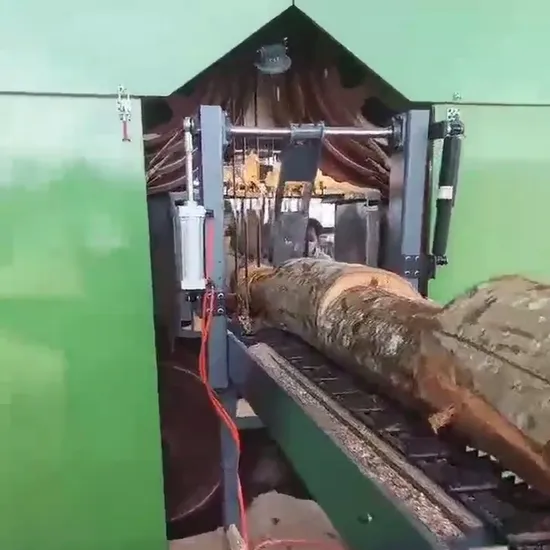

2/4/6/8/10 Blades Multi Band Saw Blades CNC Log Cutting Vertical Sawmill
Pneumatic Hydraulic blade tension with pressure gauge
Electrical control operation panel
Product Parameters

Sawing Log Diameter	100-400MM
Saw Blade Motor	30KW*2
80MM Width 1.4-1.8MM Kerf Band Saw Blades Quantity	2/4/6/8/10 Pcs
Saw Wheel Speed	700RPM
Max Diameter of Drive Wheel	950MM
Feeding Motor	2.2KW With Gear Box
VFD Chain Feeding Speed	0.1-6 Meters/Minute
Cutting Tolerance	±0.5MM
High Precision steel saw wheel	0.05MM
Voltage	380V 50HZ
Air Source	0.5-0.8MPA
Total Power	62.2KW
Length*Width*Height	6000*2500*2650MM
Weight	5200kg

Detailed Photos
Related Machines
Pine Log Cutting Bandsaw Twin Vertical Band Saw Machine
Twin Veritcal Band Saw Pine Cutting Line For Mozambique
Twin Vertical Band Saw For Pakistan
Twin Vertical Band Saw For Venezuel
Square Block cutting Multi Ripsaw

Model	60	80	100	120	150	100H	120H	160H	200H	250H	270H	300H
Cut Height MM	0-60	30-80	40-100	50-120	60-150	40-100	50-120	70-160	90-200	110-250	130-270	150-290
Cut Width MM	250-300	250-300	250-300	250-300	250-300	350-400	350-400	350-400	350-400	350-400	350-400	350-400
Saw Diameter MM	150	180	210	230	255	230	255	280	355	380	405	455
Motor Power KW	18.5/22	22*2	22*2	22/30	22/30	30*2	37*2	37/45	37/45	45*2	45/55	55*2
Weight KG	1190	1260	1420	1560	1620	2330	2450	2480	2550	2580	2620	2700

Multiple Heads Horizontal Resaw Band Saws

Model	HR1	HR2	HR3	HR4	HR5	HR6
Sawing Wood Width	300MM (Customized)
Sawing Wood Thickness	2-260mm
Saw Blade Length*Width	5000*65MM
Saw Wheel Diameter	700MM
15 KW Electric Motor	1	2	3	4	5	6
Machine Length MM	3500	4500	5800	6000	8500	11000
Weight	900KG	1500KG	2200KG	3000KG	3500KG	4000KG

Company Profile
Specialize in research & development, production, sales of sawmills and the relevant fittings SINCE 1988
We have serves 11,000 enterprises and our products have been exported to over 60 countries in the world.
Our wood band Sawmill including:
Hydraulic Heavy Duty Horizontal Sawmill
Hydraulic Portable Horizontal Sawmill
Multiple Heads Horizontal Resaw Band Saws
Heavy Duty Horizontal Sawmill
Portable Horizontal Sawmill
Thin Cutting Horizontal Resaw
Mini Portable Sawmill
Twin Vertical Band Sawmill
Vertical Band Sawmill
Log Carriage (Manual,Electric,Pneumatic,Hydraulic)
Band Saw Blade
Band Saw Blade (Sharpener,Butt Welder,Roller)
Brazing Machine (Manual/Automatic Stellite/Tungsten)
Blade Grinding Machine(Manual/Automatic ,Side/Angle)
Sawmill & Kilns & Pallet & Biomass & Forestry & Recycling
Sincerely welcome worldwide distributors to join us!

---
