Vertical horizontal milling machine ZX6350C vertical milling machine

Product Description

Product Description
Vertical Horizontal Milling Machine ZX6350C Main Features:
1. Headstock swivels ±45º.
2. ZX6350C vertical milling spindle by manual.

Specification	ZX6350C
Max.drilling dia.	Copper:Φ50 Casting:Φ30mm
Spindle taper	ISO30/ISO40/R8/MT4
Max. vertical milling dia.	25mm
Max. boring dia.	120mm
Distance from spindle to table surface	60-460mm
Spindle speeds(V/H)	V:115-1750rpm H:40-1300rpm
Spindle travel	120mm
Table size (L×W)	1120×280mm
Table travel	680×260mm
Main motor power(V/H)	1.5/2.2kw
Packing size	1680×1450×2350mm
N.w/G.w	1200/1350kg

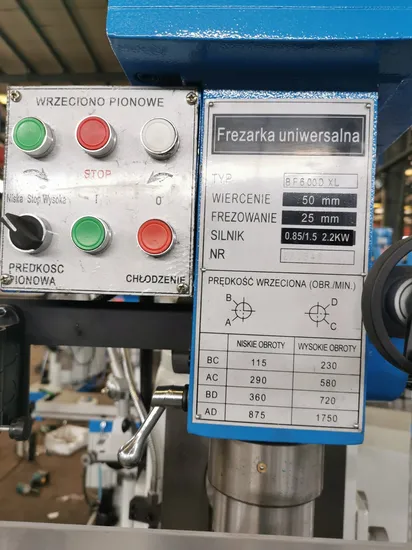

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
