China Excavating Machinery 1.6 Ton Digger Excavator Manufacturer

Product Description

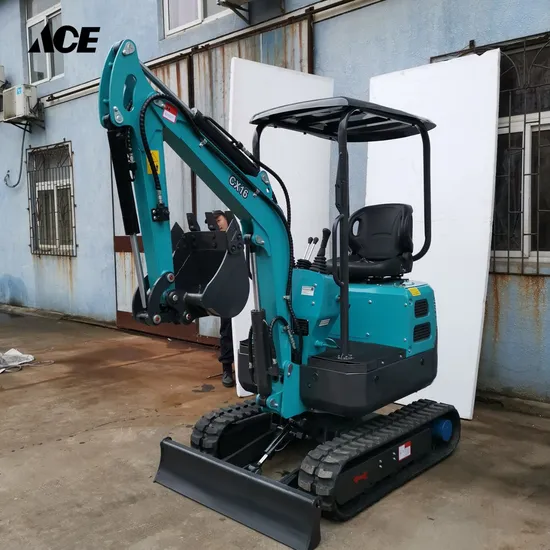

1.6 Ton China Brand Micro Digger Machine Mini Excavator Prices
farmland, municipal works,vegetable greenhouse, digging trench It is with small engine, simple design, easy to maintain.

Main technical specification:

Model		CX16
Overall Dimensions
Wheel Tread		1290 mm
Length of track		1670 mm
Ground clearance of upper platform		460 mm
Turning radius of tail		740 mm
Width		1050 mm
Width of track		230 mm
Height of track		410 mm
Length		3290 mm
Total Height		2400 mm
Operating range
Max. Digging radius on ground		3470 mm
Max. digging radius		3560 mm
Max. digging depth		2150 mm
Max. digging height		3275 mm
Max.Dumping height		2310 mm
Max. vertical digging depth		1740 mm
Min. swing radius		1440 mm
Height of bulldozing plate		285 mm
Depth of bulldozing plate		195 mm
Specification
Operating weight		1580 kgs
Bucket capacity		0.045 m³
Working device form		Yanmar backhoe
Engine	Model	3TNV70-SSY
	Displacement	0.854 L
	Rated power	10 KW ,2200r/min
	Max. torque	51.9N.M/ 1600r/min
Speed Digging force	Max.travel speed	1.5 km/h
	Swing speed	11rpm
	Max.gradeability	30°
	Bucket digging force	10.5 KN
	Bucket arm digging force	6.5 KN
	Max. traction	13.5 KN
Ground specific pressure		35kgf/cm2
Track Material		Rubber
Type of track tension device		Butter oil cylinder
Hydraulic and liquid capacity	Pump type	Gear pump (Italy type)
	Working pressure	16 Mpa
	Flow rate	25.2L/min
	Hydraulic oil tank capacity	15.3 L
	Engine fuel tank capacity	2.8 L
	Fuel tank capacity	16.4 L

OPERATE:

1. Control and coordination: The operating system can precisely control various movements of the excavator, including lifting, swinging and rotating, and walking of the bucket. Operators can achieve precise movements with joysticks or buttons to complete complex excavation tasks.

2. Operation mode selection: The operating system usually provides a variety of operation modes, such as excavation, shoveling, leveling, etc. The operator can choose the most suitable mode according to actual needs to improve operation efficiency.

Optional accessories:

PACKAGE

1,Exceptional Protective Performance: Wooden crate packaging provides excellent protection, effectively mitigating the impact of shocks, vibrations, moisture, dust, and other external factors during transportation. This ensures that the machine's performance and functionality remain uncompromised.
2,Moisture and Dust Resistance: Wooden crate packaging offers good moisture and dust resistance, preventing water, rain, dust, and other contaminants from entering the packaging and maintaining the excavator's appearance and mechanical components in optimal condition.
3,Ease of Stacking and Handling: Wooden crate packaging is often designed for easy stacking, maximizing storage and transportation space utilization. Additionally, the structure and weight of wooden crates facilitate straightforward loading and unloading processes, reducing handling complexity and risks.
4,Reusable: Wooden crate packaging typically boasts a longer lifespan, allowing for multiple reuse cycles and minimizing environmental resource wastage in alignment with sustainable development principles.
