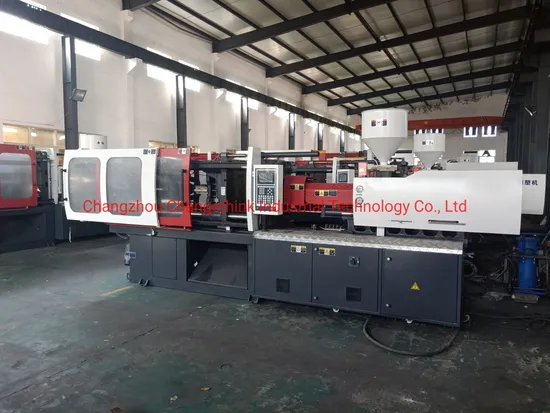

Lty-2500 Plastic Injection Molding Machine for PP and PE Plasitc

US$31,000.00 1 SET (MOQ)

Basic Info.

Model NO.
LTY-2500
Type
Plastic Product Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, GMP, QS
Transport Package
Wrap Film Packing Into The Container
Specification
250T
Trademark
LOYALTY
Origin
China
HS Code
8477101090
Production Capacity
1000sets/Years

Product Description

SPECIFICATION LTY2500
A B C D
INJECTION UNIT
SCREW DIAMETER mm 50 55 60
SCREW L/D RATIO L/D 24.2 22 20.2
SHOT VOLUME(THEORETICAL) cm3 455 550 655
INJECTION WEIGHT(PS) g 416 503 600
INJECTION RATE g/s 187 227 270
INJECTION PRESSURE MPa 205 169 142
SCREW SPEED rpm 180
CLAMPING UNIT
CLAMP FORCE KN 2500
OPEN STROKE mm 540
SPACE BETWEEN TIE BARS(W*H) mm 580x580
MAX.MOULD HEIGHT mm 550
MIN.MOULD HEIGHT mm 200
EJECTOR STROKE mm 150
EJECTOR FORCE KN 70
OTHER
MAX.PUMP PRESSURE MPa 16
PUMP MOTOR POWER kW 22
HEATING POWER kW 15
MACHINE DIMENSION(L*W*H) m 6.14x1.65x2.25
OILTANK CUBAGE L 380
MACHINE WEIGHT t 8.3
