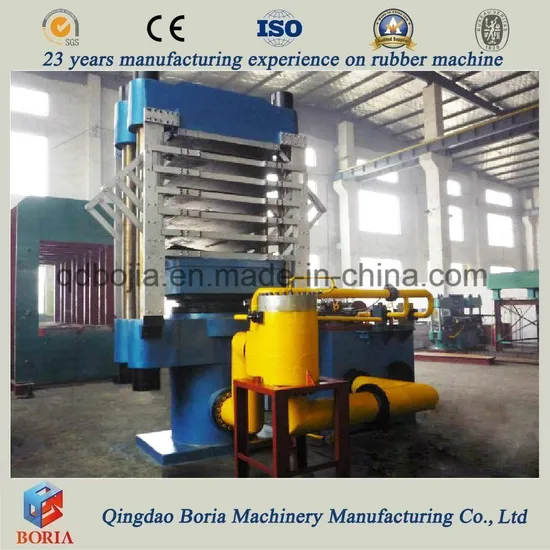

EVA Shoes Foaming Hydraulic Vulcanizing Machine

Product Description

EVA Shoes Foaming Hydraulic Vulcanizing Machine Our Advantages
I. Advantages
1. High quality plate press
2. Beautiful modeling, Compact structure
3. Completive price
4. High speed open/close mold, high production efficiency, protect mold.
5. Its structure is simpleand application is wide. It is easy to be operated
6. We can provide hand control and electric control as customer's request. Product Description
II. Feature
1. Low operation height, Operation height in accord with human engineering
2. Extra height opening stroke
Act by fixed opening stroke: 350mm, which is not affected by any mould thickness changes and
3. Available for 2plates mould, Mould thickness adjusting mechanism
Mould adjusting scope: 100-200MM
4. Rapid mould opening, Act by toggle mechanism which opens the mould rapidly
5. Speedy injector movement
Driven by linear-track, allowing speedy moving and precise positioning, Energy saving design
6. No need water circulation for mould station
7. Space saving design, Put oil tank together with injection base, which makes the structure compact and saves more space.
III. Application
1. This machine is mainly used for producing various EVA foam slippers, foam sheet, insulation materials, sports protective material, life jackets, sponges and other thermos rubber products.
2. Advantageous Features: Small temperature difference, reliable pressure performance, automatically pressure compensation during curing processMain frame use cast steel, piston adapt chilled cast iron, with surface rigidity of H-R-70.
3. Qingdao Bojia Machinery Manufacturing Co., Ltd. Your trusted partner Product Parameters
IV. Technical parameter

Type	XLB-DQ1200X1200X4	XLB-DQ1400X1500X6	XLB-DQ1500x1500x6
Total Pressure(MN)	5.00	8.00	10.00
Plate Size(mm)	1200x1200	1400x1500	1500x1500
Plate Clearance(mm)	150	150	150
Working Stroke	500	800	800
Plate Pressure(Mpa)	3.5	3.8	4.5
Motor Power(kw)	18.5	26	33
Overall Size(mm)	2400x2100x3200	2650x2400x3600	2750x2400x3600
Weight(kgs)	22,000	38,000	48,000

Detailed Photos
V. Packing
Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.
VI. Our machine list
Our company professional manufacture rubber vulcanizing press (frame type,four column type,lab press and so on), rubber mixing mill, batch off cooler, rubber extruder, rubber strip making machine and tire recycling equipment.

---
