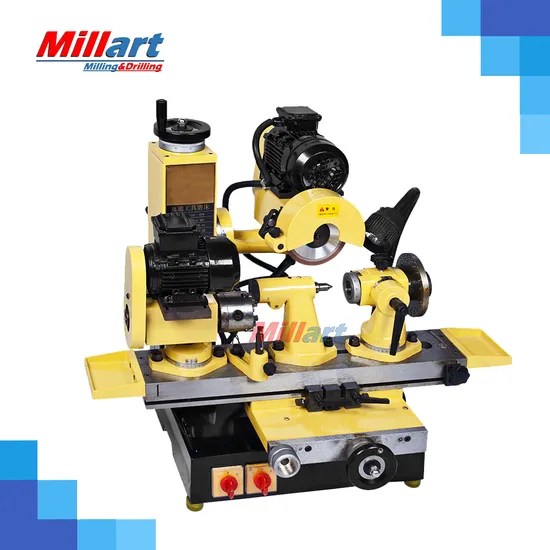

Small Universal Tool Grinding Machine Mr-600f, Multifunctional Tool Grinder, Tool and Cutter Grinder

Product Description

Product description:
Technical parameter :
Feature :
The working table uses high precision straight line roiling guide rails,good back and forth movement, high stability, steady bed platform, dexterous operation.
Motor can rotate 360° in the horizontal plane, the grinding wheel can be clockwise and anticlockwise rapidly. When grind different kinds of material's cutter, you can turn the grinding wheel, which can add the safety and reduce the time of replacing and dressing the grinding wheel, adding controllability of cutter grinding.
Standard accessory can grind lathe tool, end milling cutter, face and side cutters, hobbing cutters, circular paper cutters,etc.

Model	MR-600F
About worktable Diameter	300mm
About worktable longitudinal travel	300mm
About worktable cross travel	150mm
Worktable area	130×550mm
Center height	125mm
Rotating Angle of Wheel head	360°
Grinding wheel size	125×50×32mm
Power/Speed	2800 RPM
Motor	3/4HP 220V/380V
Dimension	700×630×630mm
Weight	175kg/165kg
Standard Equipment	50C,50H can grind slot miller,face and side cutter,lathe tool ,hobbing cutter,reamer bit etc.
Option Equipment	★50E grind spiral milling cutter ball end mill,R type lathe tool,graver and other taper milling cutter. ★50K can grind drill bit ,screw tap,side mill,round bar and so on. ★50D can grind end mill ,side mill and so on. ★50B stand base ★50J thimble

Company information:
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.

---
