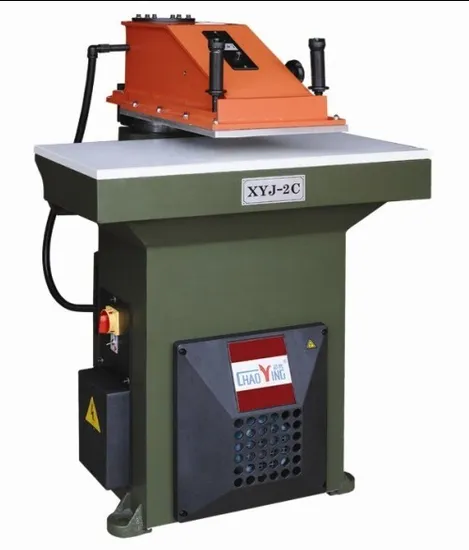

Hydraulic Swing Beam Manual Clicker Press

Product Description

Use and character
The machine is suitable for cutting single layer or multiple layers of leather, plastic, paperboard, fabric and other materials by forming cutter. It is an ideal cutting device for shoemaking, luggage & baggage, clothing, automobile, artwork, packaging, electronics and other industries.
1. There are two types of cutting modes for selection. The first type is small pressure stepless regulation. The second type is that the cutting adopts intelligent pressure feedback design function without the need of setting cutting point. The height of die cutter has no influence on the cutting and ideal cutting effect can be obtained from each cutting point.
2. Through double oil way static pressure supporting lubricating system, the vertical column makes operators' work more easy, flexible and worry-saving.
3. The main fittings are made of high quality imported assemblies, which have characteristics such as reliable quality, low noise, high efficiency and energy saving.
4. Operating with two hands make sure of workers' safety
Main technical parameters

Maximum	22T
Range of stroke	0-70mm
Distance from upper pressing board to worktable	35-105mm
Size of the upper pressing board	360* 430mm
Size of lower cutting board	900*430mm
Main motor power	1.1kW
Electric Supply Voltage	3x440/400/380/220/200V, 50/60 Hz or as optional
Net weight	650kg
Gross weight	720kgs
Dimension	900*900*1350mm
