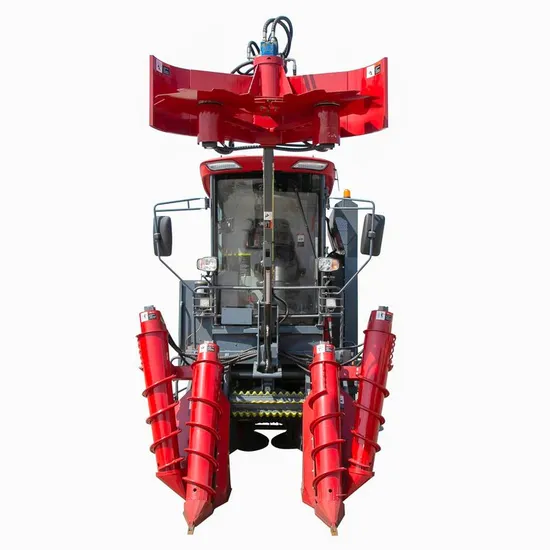

High Quality Wheeled Sugarcane Havest Cutting Equipment with Hydrostatic Drive

Product Description

High Quality Wheeled Sugarcane Havest Cutting Equipment with Hydrostatic Drive
Feature:
1. Equipped with Yuchai frequency conversion engine model YCA05190-T300,the power is up to 190HP.
2. Deluxe A/C cabin greatly increases comfort.
3. Configured with 8 inch LCD display with integration of Beidou/GPS positioning and 4G communication.
4. The combination of hydraulic and electronic control keys and the constant speed cruise can alleviate fatigue driving, also improving comfort.
5. The cut-off sugarcane harvester can simultaneously complete the sugarcane lifting up, dividing, top and root cutting, feeding, conveying, cutting, separating, fruit unloading and so on, which has advantages of less auxiliary work and high work efficiency.

Item			Unit	Specifications
Model			/	4GQ-1
Structure			/	Self-proprlled
Harvestinf type			/	Cutting
Number of Harvesting Rows			row	1
Rows Spacing			m	≥1.2m
Engine	Manufacturer		/	Corn
	Model No		/	YCA05190-T300
	Rated Power		HP	190
	Rotating Speed		r/min	2200
	Working		mm	8600*2120*4000
	Transportation		mm	7100*2560*3660
Tyre	Front	Tyre Model	/	10.5/65-16
		Gayge	m	1510
		Number	pc	2
	Rear	Tyre Model	/	14.9-28
		Gauge	m	1560
		Number	pc	2
	Wheelbase		mm	2528
Walk Drive Type			/	Hydrostatic Drive
Threoretical Walk Speed			km/h	0~25
wWeight			kg	8260
Minimun Ground Clearance			mm	260
Feeding Capacity			kg/s	≥4.5
Work Efficiency			hm²/h	≥0.24

---
