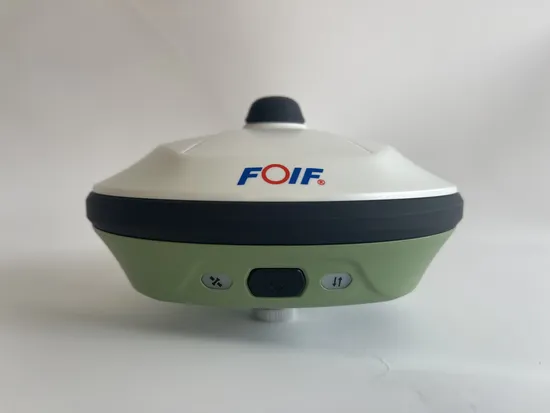

High Precision Classic Gnss Foif A70 PRO Rtk Intelligent Receiver

Product Description

Product Description 1. linux
Linux system, support WebUI web page settings
2. eSIM card
Built-in eSIM, can operate in network mode without inserting a card
3. Full Constellation
336/432/555/800/1408 channels, support seven-star 31 frequency, support Beidou-3
4. Sturdy
Lightweight and miniaturized, full magnesium alloy body design
5. Four-in-one combined antenna
Set GNSS, Bluetooth, WIFI, 4G antenna in one
6. Omnidirectional UHF radio
Built-in receiving station, omnidirectional, wide frequency, multi-protocol compatible with mainstream RTK products in the market
7. The fourth generation inertial navigation tilt measurement system
IMU inertial navigation module, 6-axis 400Hz dynamic output, tilt measurement technology without calibration
8. Built-in large capacity lithium battery
7.2V 6900mAH large-capacity lithium battery, supports USB PD fast charging, supports charging treasure Detailed Photos
Product Parameters

Model		A70 pro
GNSS	Channels	1408
	Signals	BDS: B1I/B2I/B3I/B1C/B2a/B2b
		GPS: L1C/A/L2P (Y)/L2C/L5
		GLOASS: G1/G2/G3
		GALILEO: E1/E5a/E5b/E6
		QZSS: L1/L2/L5
Accuracy	Static	H: 2.5 mm±1ppm , V: 5 mm±1ppm
	RTK	H: 8 mm±1ppm, V:15 mm±1ppm
	DGNSS	<0.5m
	ATLAS	8cm
System	Initialization Time	8s
	Initialization Reliable	0.999
	Operating System	Linux
	Merrory	8GB, support expanable MisroSD
	Wifi	802.11 b/g/n
	Bluetooth	V2.1+EDR/V4.1Dual,Class2
	Tilt Survey	don't support
Datalink	Audio	support TTS audio broadcast
	Protocol	support GeoTalk,SATEL,PCC-GMSK,TrimTalk,TrimMark,SOUTH
	Network	LTE FDD: B1/B3/B5/B8
		LTE TDD: B38/B39/B40/B41
		TD-SCDMA: B34/B39
		CDMA: BC0 WCDMA: B1/B8 GSM: 900/1800MHz
	output format	RTCM2.3, RTCM3.2, CMR, CMR+, ROX TCM3.2, CMR, CMR+, ROX
Physical	Interface	1*5Pin(Power & RS232);
		Type-C: For direct charging, data transmission;
		Sim card slot: Install SIM card
	Button	1 Power Button
	Indication Light	4 Indication Lights
	Size	148mm*62mm
	Weight	800g
Power supply	Battery capacity	Built-in Lithium-ion battery 7.2V/6700mAh.
	Life Timer	Up to 9 hours
	External power source	DC 9-18V, with overvoltage protection
Environment	Work Temporature	-35ºC ~ +65ºC
	Storage Temporature	-55ºC ~ +80ºC
	waterproof&dustproof	IP68
	Humidity	100% anti-condensation

Certifications
Factory Photos
Our Products Nanjing Cetu Surveying Instrument Co., Ltd. Was founded in 2015. Our company is known as Nanjing Jingwei Surveying Instrument Sales and Service Center (founded in 1992), which was the former sales & service platform of Nanjing Surveying instrument Factory.The main products of our company includes GPS RTK, total station, laser distance meter, theodolite, level, walkie talkie, etc. Our company has distribution rights of FOIF, Hi-Target and many other domestic well-known brands. In addition, Trimble(America) authorized our company as a special contractor.Setting surveying & mapping equipment wholesale, sales, maintenance, verification, technical consulting, GIS development and other businesses in one, our company provide perfect equipment and technical support for the areas of construction, geology, marine, agriculture and forestry, land, electricity, water conservancy, transportation, mining, mapping education, etc. Our company also has a maintenance center and verification service station, focusing on the maintenance of the instruments and the development of the technology.Over the decades, we have established great credit in the business, and we got the support of global users. "Quality first, customer first", we will always do our best to provide professional services for our customers.

---
