US$1,000.00-10,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Computerized
Computerized
After-sales Service
One Year
Machine Control
by PLC Program
PLC Control
by Screen Touch
Machine Heating
by Heater
Online or Not
Online Available
Pipe Diameters
50/63/75/90/110/125/140/160/200/250mm
Machine Color
Grey, White, Blue
Mold Cooling
Water Cooling
Temperature Controller
Omron
Transport Package
Film and Wooden Pallet
Production Capacity
100sets/Year
Packaging & Delivery
Package Size
1000.00cm * 1000.00cm * 1000.00cm
Package Gross Weight
1000.000kg
Product Description

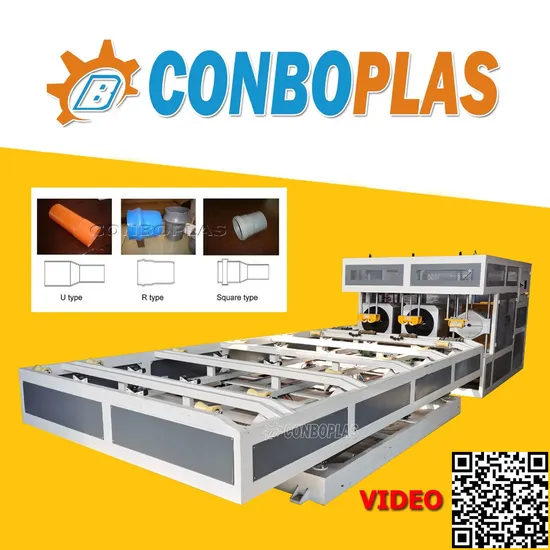

50/63/75/9/110/125/140/160/200/250mm Online Fully Automatic two Double Oven plastic UPVC PVC Pipe Belling Machine
Product Description
This machine is specially designed for the PVC electrical conduit pipe, water pipe, sewer pipe, drainage pipes; with two pieces of ovens.
It can reduce the heating time, and increase the production speed.
The machine is by all automatic control from pipes sending to working tables, pipes heating, pipes belling and pipes discharge.
All this works controlled by PLC control system and the heating time, belling processing can be adjusted to detail conditions of the formulation, and factory condition.
Product Parameters
| Pipe standards | Model | SGK-250S |
| Standard | U-PVC 1002.1-2006 |
| Diameters | Φ50/63/75/90/110/125/140/160/200/250mm |
| Pipe length | 3-6mtrs |
| Heating | Heating mode | two sets of ovens with air fan stainless steel |
| Pipe rotary | Clockwise and anti-clockwise |
| Thermocouple | K type |
| Temperature controller | OMRON |
| Heating power | 8kw*2 |
| Electrical components | PLC and screen | Delta or Siemens |
| Low-voltage components | Schneid er, Omron |
| Total power | 23kw |
| Voltage system | 3phase, 380V/50Hz (customized) |
| Pneumatic parts | Air pressure needed | 0.4Mpa |
| Pnuematic valve | AirTac |
| Machine appearance | Machine type | Fully automatic, one piece of pipe per circle |
| Central height | 1000mm |
| Height adjustment | Electrical mode |
| Machine color | Grey and white |
| Overall dimensions | 7800*1800*1850mm (L*W*H) |
| Operating principle | U type | Pushing the mold into the pipe directly |
| Cooling type | Air cooling |
| Mold material | 45# steel with Cr electroplating |
Remarks: the data above is only for reference; pls feel free to contact us for the accurate information. Detailed Photos
Certifications
Machining Equipment
Packaging & Shipping
PLS FEEL FREE TO CONTACT US FOR FURTHER DETAILS. THANKS!
>>
