Kunsha, China Rubber Hexin Wooden Case PVC Roll Cutting Machine

Product Description

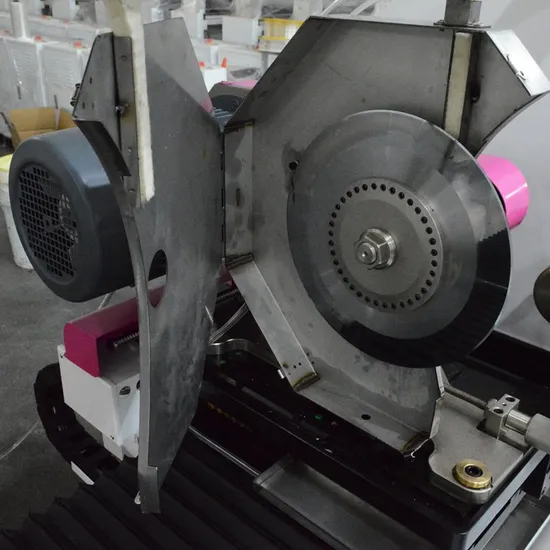

roll to roll cutting machine
Product Description
Sizing cutting for conductive fabric,foam,reflector film,double-sided adhesive tape,nickel plate,PET,PC,PE insulation paper ,copper/aluminum foil and all kinds of adhesive tapes.
computer cutting machine
Factory direct support customization
six core advantages
1.Factory direct sales 2.Time guarantee 3.Experience guarantee 4.Material guarantee 5.Price guarantee 6.After-sale warranty
science and technology manufacturing quality assurance
We work hsrd to develop machinery only provide you with hugh-quality productsBorn for efficiency
convenient operation and high efficiency We give you mor than just it is a cutting machine
Feature
Features:

Model	HX-1300Q	HX-1600Q
Cutting Length	0.1~9999.9mm	0.1~9999.9mm
Cutting Width	1~1300mm	1~1600mm
Power	8HP	8HP
Voltage	220V/380V	220V/380V
N.W./ GW.	1500/1600kg	1600/1700kg
Measurement	2.9m*1.3m*1.5m	3.2m*1.3m*1.5m

1. The max width: 1300mm/1600mm
2. Tolerence: 0.05mm, Precision: 0.1mm
3. Material thickness: 0.5mm-15mm
4. Kiss cut or cut through available
5. Under CE and ISO Certifications
6. Warranty for machine: 12months
7. Delivery time: 1-3days
8. Cut through for standard machine
9. Kiss cut is for optional
10.Single machines can do separate small processing plants, and can also make a supporting equipment for large production lines.
Characteristics:
1. This machine employs man-machine interface + PLC system equipped with pneumatic pushing device.
2. For half cutoff with multi-cut, full cutoff with one-cut.
3. Five different cutting length can be set.
4. Different cutting quantity and circulation time also can be set to improve cutting efficiency.
5. The cutting length is accurate.
6. Operation is easy.
7. Waste rate is low.
8. Manufacturing experience: 30 years
9. Export experience: 10 years
Application:
Sizing cutting for conductive fabric, foam, diffuser, reflector film, double-sided adhesive tape, nickel plate, PET, PC, PE insulation paper copper /aluminum foil and all kinds of adhesive tapes.
After-service:
1. Warranty for machines is 12 months
2. A promptly reply within 24 hours
3. Free usage training before delivering machines in factory.
4.Our company in France, India, Indonesia, Algeria, Australia, with after-sales service station.
Sample
Company Profile
We are a team of industry professionals with strong backgrounds in cutting, die cutting,slitting, laminating and rolling. Other related machines in our fields can be customized based on your specific requirements.Kunshan Hexin Precise Machinery Co.ltd is located in Kunshan city,Jiangsu province. We are near Shanghai,40 minutes away from Shanghai Hongqiao airport by car and 18 minutes by high speed train. Established in 2007, we have been dedicated on converting machines which are used before and after printing for over 10 years. Our belief is "people-oriented, technology-first, integrity-centered and brand idea" to provide customers reliable products,perfect service.Our products are widely applied in laminating, slitting and die cutting for shield materials, sticky materials,insulating materials, conductive materials, electronic materials. Sizing cutting for strings, belts, rolls in bag line, shoe andcap line and plastic and rubber line.

---
