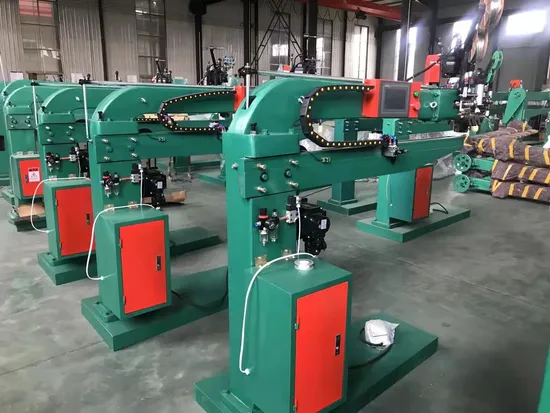

Carton Box Semi Stitcher Corrugated Cardboard Stitching Making Machine

Product Description

Products Description Best Corrugated Box Wire Stitching Machine For Packing China Manufacturer DXJ Stitcher (Stapler), the head of the machine is made with electromagnetic clutch and electromagnetic arrester. The machine has advantages as working reaction speed is high, low noise and so on. The carton stapler is the special equipment for nailing the corrugated paper carton and paper box with double-feed device. It can nail double line oblique according to 45° at the same time and nail the big and middle size paper case continuously or interruptedly. Product Paramenters

Model	DXJ-1800
Speed	400 stitcher/min.
Working thickness	3-ply, 5-ply paperboard
Width of stitch feet	13mm
Size of stitch wire	17#
Operation table height	1.2m
Motor power	0.55KW
Machine Weight	650kg

Specification

Model	Length of the stretched arm	Height of Operation table	Power	Shape size (mm)	Gross weight (about kg)
DXJ-1200	1200	1075mm	0.37KW	1700*700*1820	400
DXJ-1400	1400	1075mm	0.37KW	1900*700*1820	500
DXJ-1600	1600	1075mm	0.37KW	2100*700*1820	800
DXJ-1800	1800	1075mm	0.37KW	2300*700*1820	900

Main accessories and instructions: ★ The biggest advantage of this machine is that it can solve the problem of the molding effect of the carton due to the box opening slot pressure line (i. e., the scissors mouth of the carton or the problem of large seam and small seam). At present, this problem is a big problem in the automatic nailing machine and automatic nailing machine, which is one of the main reasons why many customers do not choose to use semi-automatic nailing machine and choose to use this foot servo semi-automatic nailing machine. ★ Dual servo drive, accurate accuracy, mechanical transmission part reduced, can effectively reduce the failure rate of machinery. ★ MCGS screen operation, parameters (nail distance, number of nails, nail) is convenient and fast. ★ The entire control system adopts the Taiwan Yonghong PLC control system. ★ Base die, blade made of Japanese tungsten steel (wear resistance) ★ The whole group of nail head Taiwan design, all made of special mold steel, computer gong precision processing ★ Can be nailed single nail, double nail, strengthen the nail (both ends are the middle part of the double nail is a single nail) one-time completion, can suit different customers for different requirements of the nail. ★ Changing the size of the carton and adjusting the distance between the carton nails can only take one minute to complete, greatly saving time and convenient operation. ★ Can be nailed single piece carton can also be nailed double piece molding carton, one machine dual use. ★ This machine can reduce the labor intensity of employees, and greatly improve the work efficiency and enthusiasm of employees.

---
