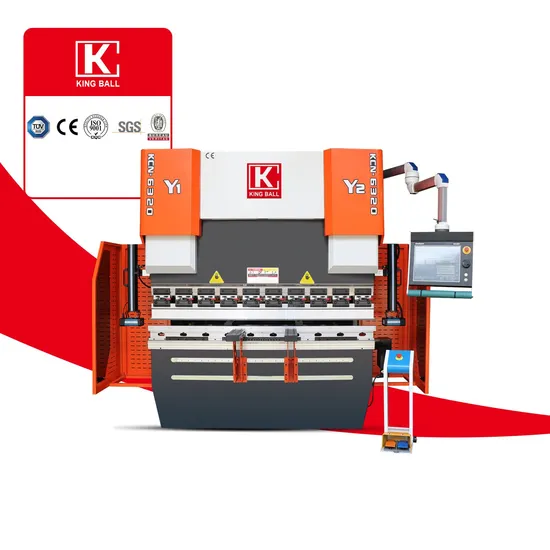

Da53t Electric Sheet Metal Bender

Product Description

Screen	10.1" TFT Colour LCD display	15" TFT Colour LCD display	17" TFT Colour LCD display	17" TFT Colour LCD display
Resoluntion	1024 x 600 pixels, 32 bit colour	1024 x 768 pixels, 32 bit colour	1280 x 1024 pixels, 16 bit colour	1280 x 1024 pixels, 32 bit colour
Maximum axes	Up to 4 +1 axes ()	Up to 4 +1 axes	Up to 8 +1 axes	Up to 8 +1 axes
Program method	numerical + 2D graphical (optional)	numerical + 2D graphical	numerical + 2D modular	numerical + 3D modular
Touch sensor	Full touch screen control (PCT-touch)	Full touch screen control (PCT-touch)	Full touch screen control (IR-touch)	Full touch screen control (IR-touch)
Storage capacity	1 GB	1 GB	1 GB	2 GB
Product and tools memory	256MB	256MB	256MB	256MB
Networking	/	Optional	Standard Windows® networking	Standard Windows® networking
Bend sequence calculation	/	Standrad	Standrad	Standrad
Offline software	Profile-53TL	Profile-58TL	Profile-TL	Profile-T3D
Tandem capability	Optional	Optional	Optional	Optional
Language	BR, CN, CZ, DK, NL EN , FI, FR,DE, GR, HU, IT JP , KR,LT, PL,PT, RO, RU, SI, ES, SE, TR	BR, CN, CZ, DK, NL EN, FI, FR,DE, GR, HU , IT JP, KR, LT, PL,PT, RO, RU, SI, ES, SE, TR	BR, CN, CZ, DK, NL EN, FI, FR,DE, GR, HU, IT JP, KR, LT, PL,PT, RO, RU, SI, ES, SE, TR	BR, CN, CZ, DK, NL EN, FI, FR,DE, GR, HU, IT JP, KR, LT, PL,PT, RO, RU, SI, ES, SE, TR

Parameters of pure electric press brake

Full Servo CNC Press Brake			3012	4016	6020	8025	10032
Capacity		kN	300	400	600	800	1000
Max. Bending Length		mm	1250	1600	2000	2500	3200
Between Columns		mm	800	1200	1600	2100	2600
Max. Shut Height		mm	480	480	480	480	480
Slide Stroke		mm	200	200	200	200	200
Throat Depth		mm	250	250	350	350	400
Down Speed		mm/min	200	200	200	200	200
Pressing Speed		mm/min	0-30	0-30	0-30	0-30	0-30
Return Speed		mm/min	200	200	200	200	200
Main Motor Power		kW	18	7.5*2	18*2	28*2	41*2
X axis stroke		mm	500	500	500	500	500
X axis speed		mm/s	300	300	300	300	300
R axis stroke		mm	200	200	200	200	200
R axis speed		mm/s	60	60	60	60	60
Outline Size	L	mm	1700	2500	2500	3000	4500
	W	mm	1450	1750	1750	1750	1920
	H	mm	2400	2500	2600	2600	2700
Weight		kg	3000	4500	5500	7200	10500

Main Ball screw Compared with the mainstream of electro-hydraulic servo press brake, motor power consumption depends on the load, to save more energy and create more economic benefits. Main motor
Servo motor through the synchronous toothed belt, ball screw transmission to realize the up and down movement of the machine beam, precisely controlled by the servo system, bring you higher speed and precision work.
Our ServicePre-sales services: 1. inquiry and consulting support
2. sample testing support
3. visit our factory
After-sales services:1. 2 years warranty period
2. training how to install and use the brake press machine
3. engineers available to service machinery overseasContact Ways Ms. Linda ZhangCustomer Manager
FAQ
1.Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis/Conformance; Insurance; Origin, and other export documents where required.
2.What is the average lead time?
For machine in stock, the lead time is within one week. For mass production, the lead time is 20-35 working days after receiving the deposit payment.
The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products.
If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to
accommodate your needs. In most cases we are able to do so.
3.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance against the copy of B/L. Orirrevocable LC at sight.
4.What is the product warranty?
We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the
culture of our company to address and resolve all customer issues to everyone's satisfaction.
5.Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
6.How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way. By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.

---
