Food Grade FDA Reach Clear Vinyl Tubing Hose Transparent Clear PVC Hose

Product Description

Product Description Food Grade Clear Vinyl Tubing

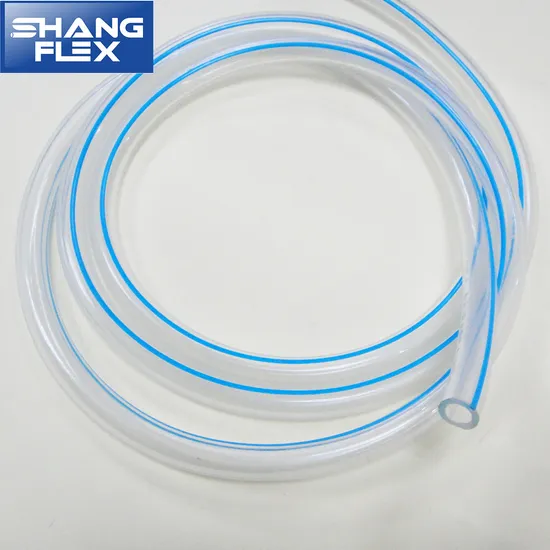

Detailed Photos PVC Clear Hose
Product Parameters Feature:
transparent pvc inner tube and cover , without any reinforcement non toxic , transparent wall , visual flow inside the hose light ,highly flexible , normal pressure resistant Temperature range: -5ºC to 70ºC Food grade quality is made from food grade pvc raw materials and plasticizers , free of phthalates and heavy metal elements. which can meet requirements of FDA , Reach , ROHS
Applications:
this hose is used to delivery water , oil , gas under normal working condition in the machine , factory , farm ,ship , building .
Food grade hose is used to delivery fresh water , drinking water , milk , beverage , wine , bear , jam.
Specifications

Inner Diameter		Outer Diameter	Length	Working Pressure	Burst Pressure	Weight
Inch	mm	mm	Mtr/Roll	bar	bar	kgs/Mtr
1/8"	3	5	100	2	6	0.016
5/32"	4	6	100	2	6	0.020
3/16"	5	7	100	2	6	0.025
1/4"	6	8	100	1.5	5	0.0285
5/16"	8	10	100	1.5	5	0.037
3/8"	10	12	100	1.5	4	0.045
1/2"	12	15	50	1.5	4	0.083
5/8"	15	18	50	1	3	0.101
3/4"	19	22	50	1	3	0.125
1"	25	29	50	1	3	0.22
1-1/4"	32	38	40	1	3	0.43
1-1/2"	38	44	40	1	3	0.50
2"	50	58	40	1	2.5	0.88

Production Details:

Packaging & Shipping

Company Profile QINGDAO SHANGFLEX TECH CO.,LTD is located in Shandong , China . We supply OEM & ODM flexible hoses, covering PVC HOSE , RUBBER HOSE , DUCTING HOSE, PU TUBE , PNEUMATIC HOSE and HOSE ASSEMBLIES , COUPLINGS , FITTINGS, CLAMPS .
Our factory was established in 2010. There are 3 professional workrooms , 1 material granule production workroom , 1 assembly workroom, 3 standard warehouses , including 100 production lines ,150 skilled technicians ,30 senior technical personnel and 5 engineers. Annual output amounts to 50,000 tons and production capacity per month can meet 500 tons.
Our factory has got ISO9001:2008,ISO14001:2008. All products can be made as the requirement of American Standard , European Standard and Australian standards. FDA , REACH , ROHS , BS3746, AS2070 .
We have professional sales and servie teams. We have exported to more than 50 overseas countries and over 100 steady customers , covering America , Canada , Australia , United Kingdom , Brazil , Agentina , Indonesia , Malaysia , Turkey , UAE,South Africa ,etc.
We are reliable source of " Made in China " . We are professional manufacturer and exporter . Your every inquiry will be followed fast by professional staff.

Factory
Granuel Room
Laboratory
Workroom and Production Machine
Warehouse

Certifications

---
