Product Description
Product Description

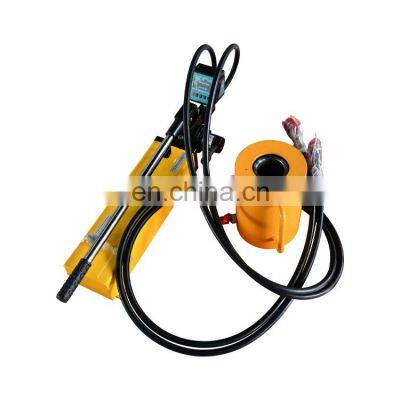

Digital Anchor Pull-out TesterProduct Usage and FeaturesTitle goes here.This GTJ series Pull out anchor tester is applicable to testing various anchor rods, anchor cables, steel bars, planting bars, expansion bolts, chemical anchor bolts, railway spikes, and various kinds of anchors.Technical ParametersModel numberGTJ-10GTJ-20GTJ-30GTJ-50GTJ-100Hollow inner diameter (mm)2735456090Piston stroke (mm)608080120150Test Strength (KN)0~1000~2000~3000~5000~1000Resolution (KN)0.010.010.010.010.01Common anchorsΦ6-20Φ6-25Φ6-32Φ6-32Φ25-40Tie rodM18M22M24M30M40Conversion headM6-20M6-24M6-27M6-27M6-33Cylinder weight(kgs)5.513152528Detailed ImagesStructure and Characteristics:Anchor rod tension score is divided into two parts: horizontal manual pump pressure and hollow jack, and is composed ofhigh-pressure rubber tube and quick joint connection. When the hand pressure pump is loaded with pressure, the jack can be raised quickly. When the required value is reached, the jack can be automatically reset when the oil return valve of the hand pump is opened.Any questions, welcome to contact our product specialist online!Company IntroductionCangzhou Lovely Technology Co.,Ltd. is a professional manufacturer specializing in Testing Equipment which service for construction, railway, highway, water conservancy, electric powder etc. We have factories in Beijing and Hebei. It covers about 3000 square meters, contains development department, laboratory for equipment. There has more than 20 technicians and 30 varieties of testing equipment.Packing & DeliveryAfter Sales ServiceFAQQ1: How long is the lead time?A: Normally 3-7 days. Depend on the order quantity.Q2: What is the transportation method?A: By Express, By air or By Sea.Q3: What are the payment terms?A: Credit card ,Bank Wire Transfer, L/C, Western Union etc.Q4: How is the after-sales service?A: 12 months quality warranty with online technical support.Q5: Are there any factory quality certificates?A: We have the ISO certificate and National patent certificates.Q6: Is Lovely test trustworthy?With more than 12 years' production experience. We would give you an excellent experience!
>>
