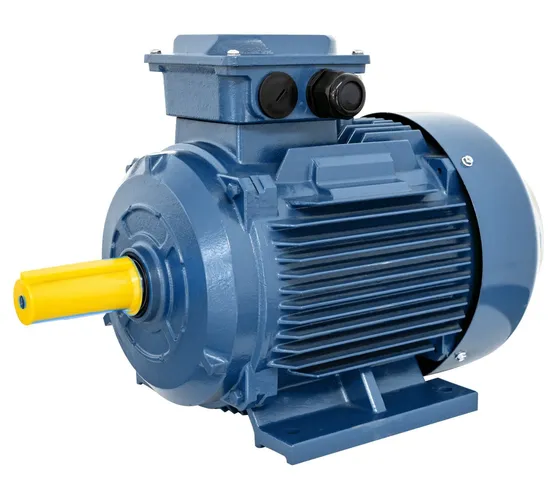

Permanent Magnet Synchronous AC Electric Motor IE4/IE5 11-22kw YTC-160M

Product Description

Variable frequency Speed - regulated Permanent Magnet Three - phase Synchronous MotorThe TYC series of permanent - magnet synchronous motors are equipped with built - in permanent - magnet steel made from rare - earth permanent - magnet materials like neodymium - iron - boron. This design enables the motors to achieve high energy efficiency and higher power density simultaneously. Even under overload conditions, these motors can demonstrate excellent electrical properties.
The TYC series motors have successfully reduced the frame size while maintaining the same output power, thus significantly saving the installation space required. This series can output constant torque at all speeds. Even at low speeds, their efficiency is superior to that of asynchronous induction motors.Detailed Photos
Product Parameters

1500r/min
TYPE	kw	HP	(A)	Speed r/min	N.m	Hz	Power Factor	Eff (%)	(kg)
TYC-71-1500	0.37	0.5	0.73	1500	2.36	75	0.9	86	9
TYC-80-1500	0.55	0.75	1.08	1500	3.50	75	0.9	86.3	13
TYC-80-1500	0.75	1	1.44	1500	4.77	75	0.9	87.8	14
TYC-90S-1500	1.1	1.5	2.08	1500	7.00	75	0.9	89.2	18
TYC-90L-1500	1.5	2	2.81	1500	9.5	75	0.9	90.1	20
TYC-100L-1500	2.2	3	4.08	1500	14.0	75	0.9	91.1	24
TYC-100L-1500	3	4	5.52	1500	19.1	75	0.9	91.8	28
TYC-100L-1500	4	5.5	7.29	1500	25.5	75	0.9	92.6	33
TYC-112M-1500	4	5.5	7.29	1500	25.5	75	0.9	92.6	36
TYC-112M-1500	5.5	7.5	9.96	1500	35.0	75	0.9	93.2	40
TYC-132S-1500	5.5	7.5	9.96	1500	35.0	75	0.9	93.2	46
TYC-132M-1500	7.5	10	13.5	1500	47.7	75	0.9	93.8	52
TYC-132M-1500	11	15	19.8	1500	70.0	75	0.9	93.8	62
TYC-160M-1500	11	15	19.0	1500	70.0	75	0.93	94.4	90
TYC-160L-1500	15	20	25.8	1500	95.5	75	0.93	94.9	110
TYC-180M-1500	18.5	25	31.8	1500	117.8	75	0.93	95.1	130
TYC-180L-1500	22	30	37.7	1500	140.1	75	0.93	95.3	150
TYC-200L-1500	30	40	51.2	1500	191.0	75	0.93	95.8	200
TYC-225S-1500	37	50	63.0	1500	235.5	100	0.93	96	255
TYC-225M-1500	45	60	76.4	1500	286.5	100	0.93	96.2	280
TYC-250M-1500	55	75	93.0	1500	350.1	100	0.93	96.6	380

Applications
Suitable for construction machinery, mining equipment, large agricultural equipment fans, pumps, compressors and other industrial equipmentOur Service
Company Profile

Test Center

Our new laboratory has a strong experimental capacity, including three-phase AC asynchronous motor, variable frequency adjustment motor, AC synchronous motor, single-phase asynchronous motor. Power range :0.25-500KW, frequency :0-500Hz. Can test all motor performance items, high precision and simple control.Exhibition
Certifications
FAQ
Q Are you a factory or trading company?A We are manufacturer located in FuZhou,Fujian,China Q Do we make special custom motors?A Yes sure Q What is your delivery time?A Normally, we can deliver the goods within one month. If we need to expedite the delivery, we can deliver the goods within 7-15 days Q What's our minimum order quantity?A Minimum order for 1 set Q How long is our shelf life?A 12 months Q Can I get a lower price if I order large quantities?A Yes, cheaper prices with more bigger quantity orders. Q How can you guarantee the production quality ?A We checked strictly before sending, will produce free of charge if it is quality problem from our side

---
