Horizontal Dry Powder Chemical Food Mixing Equipment Ribbon Mixer Blender Machine

Product Description

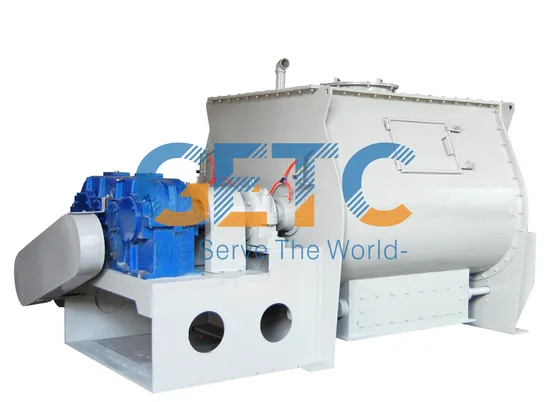

Agravic Mixer Product Description
Horizontal non-gravity mixer is a late-model mixing equipment with high efficiency, high uniformity, high loading coefficient but low energy cost, low pollution and low crush. Agitators, designed in special angle, rotates in same but opposite direction and shows a nice mixing, smashing, dispersing results. It is widely used in powder-powder, powder-liquid, powder-particles mixing. It is also able to used for materials in different specific gravity and particles in a wide range of sizes.

Features
• Double shaft paddle mixer is with 2 horizontal paddle shaft; there is the paddle on each shaft.
• with the driven equipment, two cross paddle shafts moves intersection and patho-occlusion.
• Driven equipment makes paddle rotating fast; the rotating paddle generates centrifugal force during high speed rotation, spilling the material to the upper part in the barrel, then material falling down (the vertex of material is in a so-called instant non-gravity state). Driven by the blades, material is mixed back and forth; also sheared and separated by the meshing space between the twin shafts; fast and evenly mixed.


Product Parameters

Model	Effective Volume (L)	Loading Coefficient	Power (kw)	Rotation Speed (rpm)	Dimension (L×W×H) (mm)	Weight (kg)
TDW-300	300	0.6-0.8	4	53	1330×1130×1030	560
TDW-500	500	0.6-0.8	7.5	53	1480×1350×1220	810
TDW-1000	1000	0.6-0.8	11	45	1730×1590×1380	1230
TDW-1500	1500	0.6-0.8	15	45	2030×1740×1480	1680
TDW-2000	2000	0.6-0.8	18.5	39	2120×2000×1630	2390
TDW-3000	3000	0.6-0.8	22	31	2420×2300×1780	3320

Applications
Widely used in the fields of chemical, construction, medicine, pigment, resin, glass silica, fertilize, food, feed and other powdery or granular materials.
Related Products
2D Mixer Trough Type Mixer High Speed Mixer

Company Profile
Changzhou General Equipment Technology Co., Ltd. is located in LiYang city, a famous scenic and tourist city in JiangSu Province. It is a high-tech equipment manufacturing enterprise . The company is located in the local High-tech Machinery Industrial Park, with very convenient transportation.
The company covers an area of 70,000 square meters, plant area of 50,000 square meters, nearly 100 employees. The company has high-end processing equipment & testing equipment; It has D1 and D2 pressure vessel design qualifications and A2 pressure vessel manufacturing qualifications.Our main products are including Jet Mill Micronizer, Mixer, Granulator and Dryer, Chemical Equipment: Reactor, Heat Exchanger, Column, Tank and Environmental Protection Equipment, etc .
We provide technology research and development, process design, equipment manufacturing, installation and commissioning, project contracting and other comprehensive services. Our products are quite widely applied in the industry of petrochemical industry, Pharmaceutical , Agricultural Chemistry, New Energy, thermal power, steel smelting, Environmental Protection and other Service.Our customers are from the domestic and overseas markets, product quality and fantastic service are deeply praised by customers and partners.
We adhere to the concept of "Scientific Management, Advanced Technology, Quality Priority & Win-Win Cooperation", pursue the enterprise purpose of "Market by Quality, Win customers by Reputation, and seek development by Science & Technology", carry forward the enterprise culture, deepen the enterprise management, enhance the enterprise image, actively create new high-quality products, to provide customers with the superior quality.
Sincerely welcome all customers to visit our company for guidance and cooperation, let's make a better future together.
