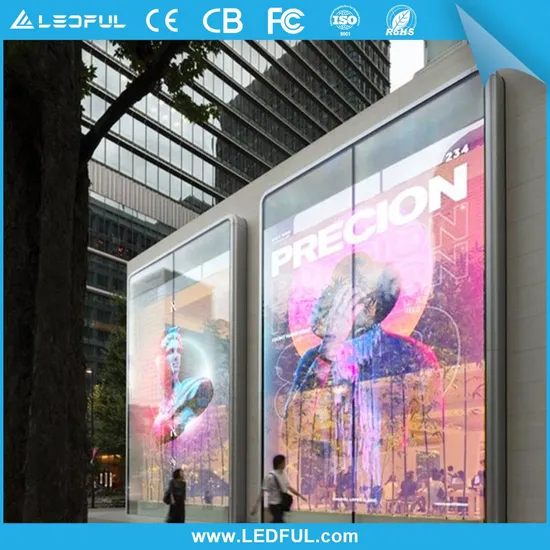

High Brightness P3.91 P10 Outdoor Film Curtain Glass Transparent Mesh LED Screen Display

Product Description

Specification

Model	P15.6D	P15.6-HB	P15-31	P15-41.6	P15-50
Pixel Pitch(mm)	15.6(V )X15.6(H)	15.6(H )X15.6(V)	15.6(V )X31.25(H)	15.6(V )X41.66(H)	15.6(V )X41.66(H)
Pixel Matrix Per Sq.m	4096	4096	2048	1536	1280
Pixel Configuration	DIP346	DIP Lamp Gold Wire	DIP 346	DIP Lamp	DIP Lamp
Brightness (cd/sq.m)	>9000 cd/sq.m	>10000 cd/sq.m	>10000 cd/sq.m	>9000 cd/sq.m	>8000 cd/sq.m
Transparency rate	0.26	0.66	0.68	0.77	0.81
Module Dimension	1000mm x23.8mm	1000mm x 5.4mm	1000mm x 10mm	1000mm x 10mm	1000mm x 10mm
Cabinet Resolution	32x64	64x32	16x64	12x64	10x64
Cabinet Weight	10KG	8.5KG	8.5KG	8.2KG	7.5KG
Power Con.(W/sq.m) (Max / Avg)	700W/200W	650W/180W	650W/200W	550W/ 180W	550W/180W
IP Rate	IP67	IP66	IP66	IP67	IP67
Cabinet Dimension	500x1000x83mm
Cabinet Material	Aluminum
Service Access	Front Or Back service
Refresh Rate (HZ)	≥3840
Grey Scale (bit)	16
Viewing Angle	120°
Operation Temperature	-40 ~+60 °C±10%
Input Voltage (AC)	110V / 220V

Model	P25-25	P25-31	P25-41.6	P25-50	P31.25
Pixel Pitch(mm)	25(H )X25(V)	25(H )X31.25(V)	25(H )X41.6(V)	50mm(H )X25mm(V)	25mm(H )X41.6mm(V)
Pixel Matrix Per Sq.m	1600	1280	960	800	1024
Pixel Configuration	DIP Lamp Gold wire	DIP Lamp Gold wire	DIP Lamp Gold wire	DIP Lamp	DIP Lamp Gold wire
Brightness (cd/sq.m)	>10000 cd/sq.m	>9000 cd/sq.m	>7000 cd/sq.m	>5500 cd/sq.m	>8000 cd/sq.m
Transparency rate	0.6	0.68	0.76	0.8	0.68
Cabinet Resolution	20x60	16x60	12x60	10x60	16x48
Cabinet Weight	9.5KG	9KG	8.5KG	8KG	9KG
Module Dimension	1500mm x 10mm
Cabinet Dimension	500x1500x83 /1500x500mm
Cabinet Material	Aluminum
Power Con.(W/sq.m) (Max / Avg)	160W
Service Access	Front &back service
Refresh Rate (HZ)	≥3840
Grey Scale (bit)	16
Viewing Angle	120°
IP Rate	IP67
Operation Temperature	-40 ~+60 °C±10%
Input Voltage (AC)	110V / 220V

Company Profile LEDFUL is a top LED display manufacturer with 13 years rich experience providing 3 years warranty.
We concentrate on LED Poster, Transparent LED screen, Outdoor & Indoor commercial LED billboard,
Rental LED screen, Sports LED display.
Certifications Due to our best balance of quality & price with strong reputation, our LED displays are exported to 83
countries in Europe, America, Asia, Africa, and Oceania with successful 5600 projects. Besides LEDFUL
obtained CE, FCC, RoHS, CCC, UL, ETL, EMC, ISO9001 certificates. A state-of-the-art manufacturing
and testing facility ensures LEDFUL products of the high and stable quality.
Each product goes there 16 monetary procedures 23 operating procedures in 1500 tests and experiments.
Packaging & Shipping All employees are honest, responsible and diligent. Dedicated to professional,
high efficient and caring features, our experienced sales engineers listen to you,
think more for you.
In addition, take good care of each detail of your order, packages and shipping.
We also welcome deep customized, OEM, ODM orders and distributors application.
LEDFUL is a trusted one-stop LED display solution provider with more designs and more solutions.
Our partners are media advertising, audio, video & light, retail, property, religion, sports, event, studio.
Front service, double sided, column, flex, curved, sphere, 90 degrees, any irregular shaped LED display
are available.
Our corporate philosophy is to maximize the value for our customers and to provide the best service for
our customers. FAQ 1. Q: What's the brightness of ST LED screen you can make?
A:We can make 8000~10000nits high brightness which can let the screen to face the sunshine directly and still has a perfect performance.
2. Q: Can we customize the display size?
A:Yes we can. Our standard size is 1500x500mm or 1000x500mm. If other size is needed in your project, we will design it for you.
3. Q: How do we install the ST LED screen?
A:We will provide the screen installation brackets, you just need to make a simple structure in local and then you can install the cabinets and brackets on it. We have detailed tutorial video to share.
4.Q: Are you trading company or manufacturer?
A:LEDFUL is a professional LED display manufacturer, having been enrolled in led display industry with professional
R&D team and skilled QC team for 13 years.
5.Q: What is the control system? How is it?
A: We use Nova Taurus Series asynchronous control system. Support cluster play and management.
Support APP/Phone/WIFI Ipad/Laptop/PC/Cloud control. It's very easy and convenient to control.
6.Q: What is your best service?
A: One to one sales engineer to customer responsibility system. We will do:
1) Know your project and provide the best solution for it.
2) Track your order and let you know each step and detail of it.
3) Teach you how to install and use the screen.
4) Care the subsequent use of your screen and ensure vour after -sales service be well.
7.Q: How about your Warranty Term?
A: 3-year warranty. we have professional after-sale team to solve your any questions after you placed an order.
And your exclu-sive sales engineer will also help you to get over any problems.
LEDFUL, Makes The World More Colorful.

---
