1000mm 1250mm 1400mm 1600mm Big Bore Heavy Duty Lathe Machine

Product Description

Product Description
(SUPER GOOD QUALITY ONLY!!!)

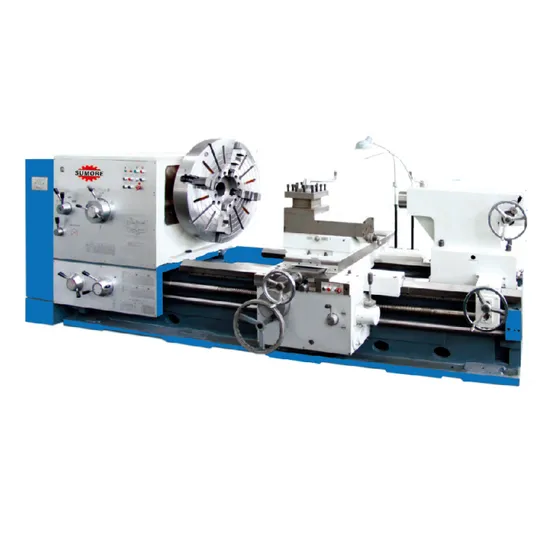

Japanese Quality High Precision Universal Lathe Machine with Big Bore
(Our lathe can be from small to big size, the web pages are limited, so please contact us for more details, we believe that there must be suitable models for you)
SP2147 C62160G metal torno heavy duty large diameter lathe machine torno mecanico horizontal lathe machine
Workshop equipment 1 to 12 meter swing diameter 1 to 1.6 m horizontal not second hand manual metalworking lathe machine
Quick Detail: Main specification of horizontal lathe machine:Processing material: aluminum, copper, metal, steel etc.Workpiece length: 1500/2000/3000/4000......12000mmSwing over bed: 1000/1250/1400/1600mm
Max workpiece weight: 8TSpindle bore: 130mm Description: SP2147 engine lathe machine has big hole 130mm spindle bore, the work piece length could be up to 12000mm, It is universal lathe machine with strong function. This manual lathe machine has up to 1600mm large swing over bed. The main features/advantages are as below: 1. This lathe machine can use to process castings, steel and medium-sized and large-sized parts of nonferrous. 2. Removable gap is provided for larger diameter work and easy operating gear box can be various feeds and thread cutting. 3. This serial lathe machine are universal lathe,suitable for high-speed steel and carbide cutting tools for different materials steel shaft parts, cylindrical parts and disk-shaped, for turning cylindrical, face, grooving, cutting, boring, boring the cone, threading and other processes. 4. They are also suitable for turning external cylindrical, inner hole and end face. 5. Triple support of this series lathe machine ensures spindle rigidity and supporting capacity. 6. This series lathe machine have the large speed range, and the motion is smooth and the low temperature-rising. 7. This series lathe machine has the nice and dignified appearance.
Product Parameters

Model	SP2147-I/II/III/IV
Swing over Bed	100/1250/1400/1600 mm
Swing over Cross Slide	620/870/1000/1200 mm
Swing over Gap	1300/1550/1700/1900 mm
Valid length of gap	450mm
Distance Between Centers	1.5/2/3/4/5/6/8/10/12m
Width of Bed	780 mm
Spindle Bore	130 mm
Spindle Taper	1:2 Φ120 mm (140mm optional)
Range of Spindle Speeds	forward 21 kinds, reverse 12 kinds
GEAR BOX-THREADS & FEEDS
Metric threads range(kinds)	1-120mm(44 kinds)
Inch threads rangs(Kinds)	1/4-24 inch(31 kinds)
Moudle threads range(kinds)	0.5-60mm(45 kinds)
Diametral threads range(kinds)	1/2-56DP(38 kinds)
Longtudinal feeds range(kinds)	0.1-12mm (56 kinds)
Cross feed range(kinds)	0.05-6mm (56 kinds)
Rapid feed:Long./Cross	4/2m/min
Leadscrew size:Diameter/Pitch	3400mm/min, 1700mm/min
CARRIAGE
Cross slide travel	650 mm
Compound rest travel	280 mm
Tool section	45*45 mm
TAILSTOCK
Spindle diameter	160 mm
Spindle taper	Metric 80#
Spindle travel	300 mm
MOTOR
Main drive motor	22kw
Coolant pump motor	0.15kw
Rapid feed motor	1.5kw

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs ,UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!

---
