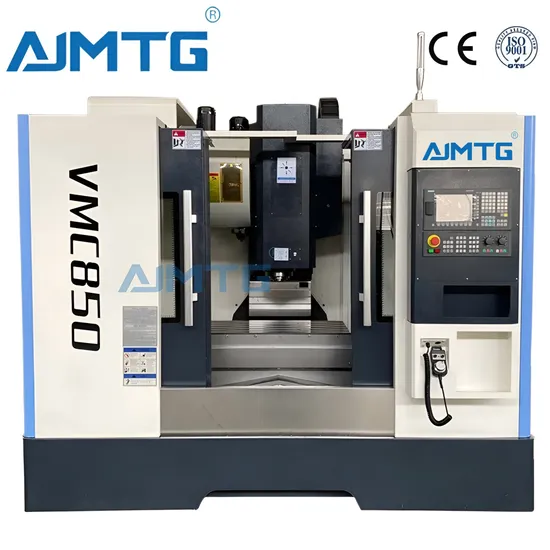

Nantong AJ Industry Limited offers the VMC855(H), VMC1060(H), VMC1160 3/4/5-axis Horizontal Metal Cutting Mini Vertical Drilling CNC Milling Machine CNC Machining Center VMC. Explore our Taiwan 3-Year Warranty CNC Vertical Machining Center for precision and reliability.
| Machining range | X axis travel | 800mm |
| | Y axis travel | 500mm |
| | Z axis travel | 500mm |
| | Spindle nose to worktable | 150-650mm |
| | Spindle to column guide | 550mm |
| Worktable | Worktable size | 1000x500mm |
| | T slot | 18X5X90mm |
| | Weight load | 500kgs |
| Spindle specification | Spindle | 8000rpm belt drive Japan make |
| | Spindle motor | 7.5kw |
| | Spindle taper | BT40(Ø140) |
| Feed system | G00 fast feed | 48/48/36m/min |
| | G01 cutting feed | 1-10000mm/min |
| | Servo motor | 2*2*3kw |
| Tool system | Capacity | 24 tools arm type Taiwan make |
| Main parts | Make |
| Ball screw | Taiwan C3 grade diameter 40mm, pitch 12/16mm |
| Linear guide | Taiwan HIWIN or Germany 35mm pin roller type |
| Spindle | Taiwan diameter 140mm , 8000 rpm |
| Tool magazine | Taiwan BT40-24 tools arm type |
| Bearing for 3 axis | Germany or Japan Nachi, Screw Angle Support Bearing 30X62 |
