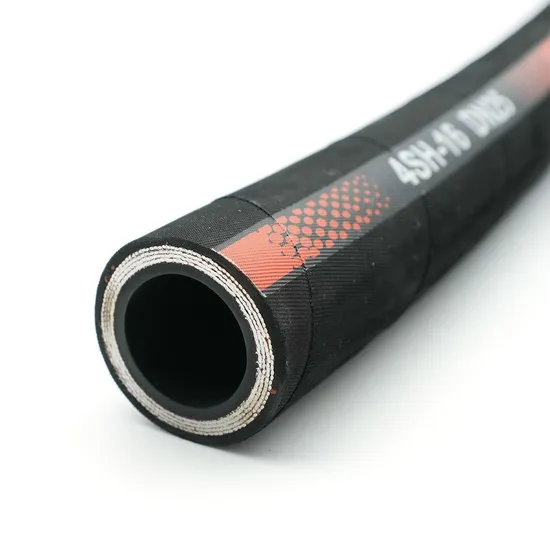

SAE 100r12 DIN En856 4sh 4 Layers Spiral Hydraulic Hose

Product Description

Product Description
Hydraulic Rubber Hose:
A hydraulic hose is a flexible tube used to transmit fluid pressure in hydraulic systems. It typically consists of a rubber or synthetic inner tube, reinforced with textile or metal layers, and covered with a protective outer layer. Hydraulic hoses are designed to withstand high pressures and temperatures, making them essential in various industries such as manufacturing, construction, and agriculture. On Qingdao Grantseed Rubber Co. Ltd, you can find a wide range of hydraulic hoses from certified suppliers, including custom-made options, in various sizes, materials, and specifications.
A hydraulic hose gives designers intrinsic adaptability while simultaneously facilitating fluid transfer between components. The flexibility of the hose makes it possible to arrange parts effectively and correctly in the most practical locations since it can bend, fit through narrow areas, and span large distances. It is very important to have proper hydraulic hoses for various applications so operations can run smoothly.Product Parameters

Hydraulic Rubber Hose DIN EN856 4SH
Tube		Synthetic rubber,resistant against hydraulic fluids(HL,HLP,HLPD, HVLP,HFA,HFAS,HFB,HFC)
Reinforcement		One braid of high-tensile steel wire
Cover		Abrasion and ozone-resistant synthetic rubber Note: various covers available
Temperature range		-40 Celsius to 100 Celsius /-40 Celsius to +212 Celsius (Max 120/248 Celsius intermittent)

TECHNICAL DETAILS:

Nominal Diameter			Inside Diameter		Braid Diameter		Outside Diameter		Max. Working Pressure		Min. Burst Pressure		Min Bendradius		Weight
mm	inch	dash	mm	inch	mm	inch	mm	inch	bar	psi	bar	psi	mm	inch	kg/m	Ibs/ft
16	5/8	-10	16.4	0.65	25.0	0.98	28.7	1.13	420	6090	1680	24360	200	7.9	1.26	0.885
19	3/4	-12	19.5	0.77	28.3	1.11	31.9	1.26	420	6090	1680	24360	280	11.0	1.44	0.97
25	1	-16	25.9	1.02	35.4	1.39	38.2	1.50	380	5510	1520	22040	340	13.4	1.99	1.34
31	1-1/4	-20	32.5	1.28	42.3	1.67	46.1	1.81	350	5075	1400	20300	160	18.1	2.55	1.71
38	1-1/2	-24	38.7	1.52	49.2	1.94	53.4	2.10	290	4205	1160	16820	560	22.0	3.26	2.19
51	2	-32	51.1	2.01	63.2	2.49	68.0	2.68	250	3625	1000	14500	700	27.6	4.50	3.02

Detailed Photos
DURABLE AND LONG-LASTING:
This hydraulic rubber hose is made with high-quality steel wire reinforcement, ensuring it can withstand extreme temperatures ranging from -40°C to +100°C, making it a reliable choice for heavy-duty applications.CUSTOMIZABLE OPTIONS:
The hose is available in various lengths, including 20/40/50/100 meters, and can be customized to meet specific user requirements, such as different layer configurations (1-6 layers) and model numbers.HIGH-PRESSURE RESISTANCE:
With its oil-resistant industrial hydraulic hose design, this product can handle high-pressure applications, making it suitable for use in mechanical equipment and heavy machinery.
WIDE COLOR OPTIONS:
The hose is available in black or other colors, allowing users to choose a color that suits their specific needs and branding requirements.EXCELLENT PROCESSING SERVICE:
The manufacturer offers cutting services, ensuring that the hose can be precisely cut to the required length, making it easy to integrate into various mechanical equipment and systems.
FAQ
Q1. What hose do you provide?
Main rubber hose products:
high-pressure steel wire braided hose, high-pressure steel wire spiral rubber hose, steel wire winding hose, flame retardant, resistance to high temperature and high-pressure drilling hose, etc.
Q2. What are the product applications?
Mining, hydraulic support, hydraulic system, emulsification pump, construction machinery, coal mine underground water delivery, feng shui working face, water delivery, oil transportation, sand pumping, mud discharge, suction dust, exhaust gas, ash, engine gas pumping, Gas drainage/warm air duct.
Q3. What are your advantages?
High quality, complete specifications, stock in stock. company has passed ISO9001:2015 international quality management system certification and ISO14001:2015 environment management system certification. HOSAS18001:2007 certification of safety management system certification, mining products safety sign, etc.
Q4. What is your shipping way?
Express (DHL, FedEx, TNT), By air, Or Sea. We will choose one shipping way to suit customers' requests.
Q5. How do you guarantee your quality?
Firstly, we do quality tests during every process. We produce most components by ourselves, it starts from cutting raw material and machining roughly in the first step. casting , forging , punching , heat treatment , finish machining , painting , assembling , and finally packing , we will spot-check for each step.
Secondly, we will collect all comments on our products from customers in time. And try our best to improve quality all the time.

---
