3ton/H Huge 4m OTR Tyre Rubber Recycling Machinery Tire Shredding for Tdf /Mulch Steel Remover

Product Description

3ton/h Tyre rubber recycling machinery with high quality tire shredder for TDF /mulch Product Description
Tyre tire shredder plant is used to recycle waste tyres of different vehicle types, such as cars, light commercial vehicles,SUV and trucks, from shredding,crushing, wire and fiber separation to produce pure rubber particles and powders. Intelligent design, PLC control,capacity range 500kg/hr-3000kg/hr,equipment or plant can be customized according to customer's needs.

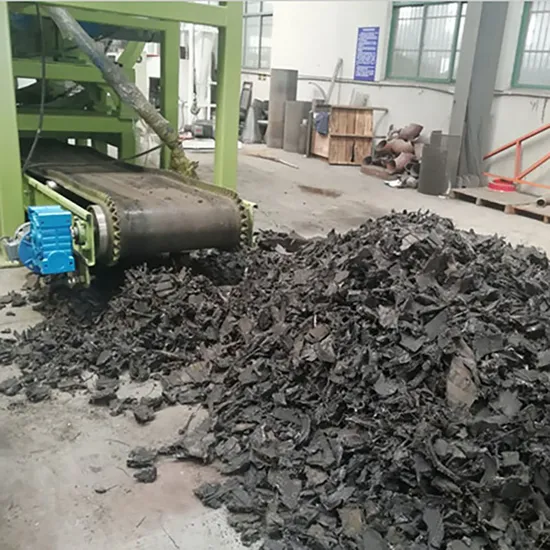

Finished products

Finished products

Tyre	Car tyre,truck tyre,SUV tyre, Semi OTR
Tyre Size	800mm,1100mm,1200mm,2000mm,2500mm
Finish	TDF/TDA, rubber mulch, rubber crumb, rubber powder
Capacity/hour	500kg, 1000kg, 2ton,3ton,5ton,10ton
Crumb purity	95%-99% free of Textile
	99% free of steel
	99% free of stone and other contaminants
Steel purity	95%-97% Contaminant free

Main machine description

1. Double shaft shredder Optima two shaft shredders are designed with an aggressive low RPM, high torque shredding technology. Each shaft is driven by its own Siemens motor, giving it plenty of power to drive through tyres and thick steel beads. The shredder blade thickness ranges from 25 mm to 152 mm (1''-6") depending on the type of tires, throughput, and desired end product. The shredder machine can process OTR tires, truck tires, and car tires at a rate of up to 10 tons per hour.
2. Grater The Grater machine is the ultimate machine for mid-stream grinding and steel separation. It is specially designed to process pre-shredded tires chips and produce between 25-12 mm (1" - 0.5") wire free rubber mulch. And the Grater can process up to 6 tons of input per hour. The main rotor housing is equipped with replaceable wear plates to increase the durability and longevity of the cutting chamber. Another unique feature of this machine is the ability to turn the knives once before having to send them to be sharpened or replaced, minimizing operating costs.

3.Granulator The Granulators are designed to grind the rubber mulch from the Grater into small granules as fine as 1 mm. The granules are screened and re-circulated until the desired size is reached. Due to the design of the Granulator and precise alignment of the blades, the Granulator produces a very uniform cut and high quality granule. During the granulation process, 99% of the fiber is removed, leaving a contaminant free crumb rubber granulate ready to be further processed or sold.

Successful project:

1. Recycle tires to rubber crumb in India
2. Recycle tires to rubber crumb in USA

After sales service

· Key Service: one-stop service, turnkey service · Quick response: 0 email over night · Installation and debugging: 1 or 2 engineers will be sent to customer site · Online support: <12hr · Video support: <12hr · Warranty: 12months · After-sale: life-long maintaing and technical support

Certification

Packaging and shipping

Company Profile
1. Founded in 2011,10+ years manufacturer and exporter ------Rich experience will help you to solve problems of machines and exporting.
2. European technology-------Better design to rise the productivity, and works stable.
3. Contracted manufacturer for Eco Green -------Approved high quality machines with better price
4. Cover a full range of sizes and applications-------- Offer you more options.
5. CE certified
6. ISO9001 system approval
7. One stop service, turnkey service----We are in charge of solving problems from the begining to the end.
8. 1hr to airport,2hr to Shanghai port , 3hr to Ningbo port------Short distance to sea port to save the shipping freight before loading.

Processing machinery

100% Test before shipping

Successful Projects Examples

Good cooperation with Customer

Welcome to send us inquiry, so that we can discuss more on your project.
Professional solutions is waiting for you!

---
