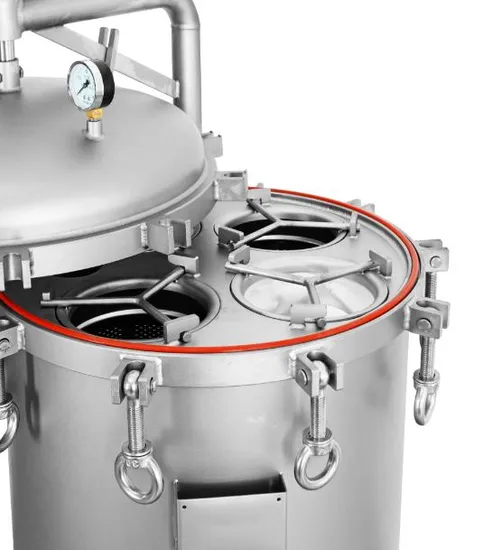

Multi-Bags Filter Housing for Industrial Liquids Filtration CS 304 316L 2205 Ti

Product Description

Multi-bags Filter Housings can accommodate 2 to 30 filter bags. The filtration area is the sum of the filtration area of all filter bags. We select the appropriate number of filter bags according to the filtration volume and filtration accuracy. There are a variety of materials and precision filter bags for selection, with simple structure and convenient operation. After filtering for a period of time, as the impurities increase, the filtering speed will drop. At this time, a new filter bag needs to be replaced. If the filtering process cannot be interrupted, multiple units can be connected in parallel to replace the filter bag in turn.
Common products parameters:

Model	LWDL-2P2S	LWDL-3P2S	LWDL-4P2S	LWDL-5P2S	...	LWDL-30P2S
Effective filtration area	1.0m2	1.5m2	2.0m2	2.5m2	...	15m2
Average filtration velocity	60m³/h	90m³/h	120m³/h	150m³/h	...	900m³/h
Cylinder size	φ400*3mm	φ450*3mm	φ500*3mm	φ550*4mm	...	φ1350*8mm
Inlet/Outlet	DN50/65/80	DN65/80/100	DN80/100	DN100/125	...	DN300/350
Overall height	1450mm	1450mm	1450mm	1450mm	...	1450mm
Materials	SS304,SS316L,2205,TA2
Max. Operating Pressure	0.6MPa,1.0MPa,1.6MPa
Surface treatment	Shot blasting, Polishing, The inner surface is lined with rubber or sprayed with PTFE

---
