Automatic Metal Linear rail CNC turning machine TCK50A slant bed CNC lathe

Product Description

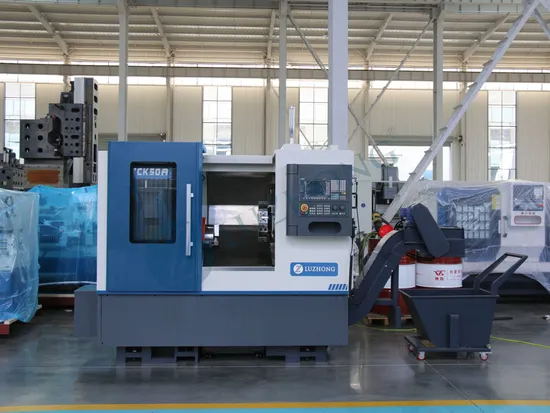

CNC turning machine TCK50A slant bed CNC lathe
Product Description

The main performance characteristics: Guide rail high frequency quenching, high hardness and wear resistance,Principal axis diagonal distribution contact ball bearing,high speed and high rigidity,Instrument lathe replacement products, have a high price ratio, screw mid place ,Application:This machine is widely used in electrical equipment, Instrument apparatus industry, Cars, Motorcycle parts, Fastener bearing, Photographic equipment, movie mechanical, hardware various clocks and watches,The glasses, Stationery, electric machinery, Valves, Gas pipe fittings and other high precision machining and manufacturing of complex parts, Is a hardware machinery processing industry the most ideal efficient equipment. Is a hardware machinery processing industry the most ideal efficient equipment.
Product Parameters

SPECIFICATIONS	Units	TCK36A	TCK46A	TCK50A
Swing over bed	mm	360	460	500
Swing over cross slide	mm	140	170	250
Max. workpiece length	mm	300	350	350/500
Spindle bore	mm	56	56	66
Bar capacity	mm	44	44	55
Spindle nose type	-	A2-5	A2-5	A2-6
Spindle speed steps	-	Stepless	Stepless	Stepless
Spindle speed range	rpm	4000	3500	3000
Turret/tool post	-	8 Hydraulic turret 8position
Tool size	mm	20*20	25*25	25*25
X axis travel	mm	185	240	240
Z axis travel	mm	350	400	350/500
X axis rapid traverse	mm/min	24000	24000	18000
Z axis rapid traverse	mm/min	24000	24000	18000
Main motor power	kw	5.5	7.5	11
Tailstock quill diameter	mm	65	70	70
Tailstock quill taper	-	MT4	MT5	MT5
Tailstock quill travel	mm	60	80	80
Guide rail type	-
Machine weight	kg	2400	2600	3100/3300
Overall dimension(L*W*H)	mm	2200*1600*1850	2500*1950*1950	2600/2700*2000*2000

Detailed Photos

ONE PIECE CASTING 1.45 degree slant bed cnc lathe 2.High precision and high efficiency	SPINDLE UNITS Higher accuracy spindle units
LINEAR RAILStandard:Taiwan Linear rails	SCREW Chinese famous brand ball screw with high precision and high speed
CONTROL SYSTEMStandard: GSK controller system	HYDRAULIC CHUCKStandard:Chinese hollow hydraulic chuck
HYDRAULIC SYSTEM Hydraulic system to give power supply for hydraulic chuck and hydraulic tailstock	LUBRICATION SYSTEM HERG Automatic centralized lubrication device .
HYDRAULIC TURRETStandard: 8 position hydraulic turret	HYDRAULIC TAILSTOCKStandard:hydraulic tailstock install on hard rail
ELECTRICAL COMPONENTS Standard:Schneider electrical components	HEAT EXCHANGER Keep the temperature of the electrical cabinet constant and extend the life of the electrical cabinet.

Optional Accessories
Company Profile

Shandong Luzhong Machine Tool has :
More than 100,000m² of the factory with more than 200 workers.
Strictly QC control with more than 24 steps testing processes
30+ years CNC machine manufacture experience factory
24 hours online service at any time
Trade with customers in more than 150 countries around the word .
Cooperate with the Famous Brand , such as SIEMENS, FANUC , SYNTEC ect.
Support ODM OEM.
Warranty time is 18 months.

Shandong Luzhong Machine Tool Co.,Ltd. Has got many international certifications such as ISO, WIPO, CE, BV, TUV, SGS, and patents. Our machines have been exported to more than 100 countries and regions, covering North America, Europe, Europe, South America, Middle East, and Southeast Asia. And we provide long-term overseas technical guidance and after-sales service for these countries .


Adhering to the "Best Machine by LUZHONG" purposes, We provides better quality machines, more efficient and thoughtful after -sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
FAQ

1:How can I choose the most suitable machines ?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you . 2: What's your main products of your company?A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . 3: Where is our factory located? How can I visit there?A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us. 4. What is your trade terms?A : FOB, CFR and CIF all acceptable. 5: What's the Payment Terms ?A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . 5: What's the MOQ?A: 1 set .(Only some low cost machines will be more than 1 set )

---
