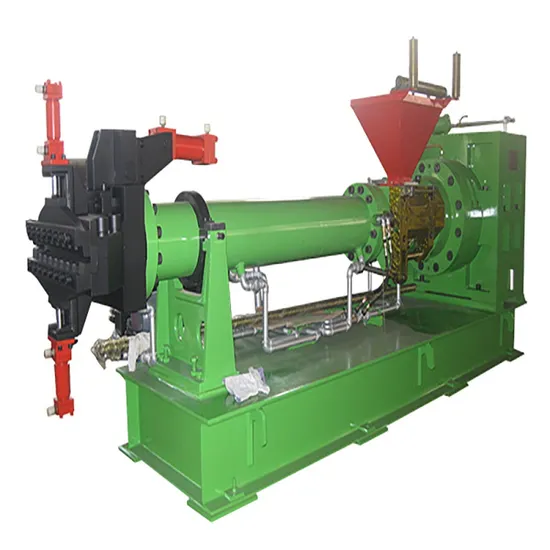

Factory Direct Cold Feed Extruder Rubber Machinery

Product Description

Product Description
The equipment has the characteristics of high production capacity, low temperature of rubber material, less energy consumption, good mixing quality, uniform plasticization, etc., with a bolt can uniformly and stably extrude a variety of mouth type rubber material, so it can be widely used in rubber hose, inner tube, tape, lining, sealing strip, wire and cable, sheath, side table, submouth rubber and other extrusion molding. Products are XJ-65, XJ-90, XJ-120, XJ-150, XJ-200 and other models to meet different customer needs.Cold feed rubber extruder is a kind of rubber industry equipment. Cold-fed rubber extruders are widely used in China's rubber industry. In the production of radial tires, annular grooves are opened in the spiral parts corresponding to the three phases of tread extrusion, compound tread extrusion, Angle glue and various types of rubber. The nail is directly inserted into the ring groove of the pin, and the rubber material moves laterally, fluidly and rotatally under the action of these pins. Due to the combined action of these three forms of movement, the core formed during the extrusion of rubber material can be effectively destroyed. Each time the core passes through the pin, it is cut once, and each rotation of the screw, the glue is divided and cut by a handful of pins, strengthening the kneading and accelerating the flow of the glue in the screw thread groove, so that high-quality mixing, kneading and plasticizing glue can be obtained.Detailed Photos
Due to the insertion of the pin, the ability to mix, knead and plasticize is strengthened, under the same extrusion conditions, the working length of the screw can be shortened 2D-4 compared with the ordinary cold feed extruder, and the time of the material staying in the barrel is shortened due to the reduction of the length-diameter ratio. Almost all of the extruders that produce rubber are pin-type cold feed rubber extruders. In the bias viviparous birth, in recent years, the replacement of hot feed extruder with pin type cold feed rubber extruder has been the trend, the rapid development, such as tread compound extrusion, various triangle glue, various types of rubber extrusion, many production plants have used pin type cold feed rubber extruder. In the production of rubber hose, the inner rubber extrusion and outer rubber extrusion also use the cold-fed pin rubber extruder.Product Parameters

	XJW-60	XJW-65	XJW-75	XJW-85	XJW-90	XJW-120	XJW-150
Screw diameter(mm)	60	65	75	85	90	120	150
Length-diameter ratio(l/d)	10~12	10~12	12~14	12-14	12~14	12~14	12~14
Screw highest speed(r/min)	75~75	75~75	62~62	60~60	60~60	55~55	45~45
Motor power(kw)	15~18.5	18.5~22	30~37	37~37	45~55	75~90	125~160
Steam pressure(mpa)	0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6
Cooling water pressure(mpa)	0.2~0.4	0.2~0.4	0.2~0.4	0.2~0.4	0.2~0.4	0.2~0.4	0.2~0.4
Maximum yield(kg/h)	75~90	90~100	140~160	230~220	260	520	830
Equipment weight(t)	2.5~2.6	2.6~2.7	3.2~3.0	3.6~3.5	3.8~4.1	4.3~4.8	7.1~7.5

Certifications
Company Profile
Qingdao Junlin Machinery Co., Ltd. is a company engaged in rubber machinery, shoe machinery research and development and manufacturing enterprises, located in the west coast of Qingdao, Shandong, China, the geographical environment is superior.
The company gathers a large number of outstanding technical and management talents in the industry, with advanced machining equipment and precision testing instruments. Relying on high-quality service, advanced equipment and excellent technical strength, through continuous innovation and development, Junlin Machinery has established a stable business relationship with many customers at home and abroad, and gradually established a brand position in similar enterprises.
The main products of the company are: open rubber mixing machine series, waste tire rubber recycling production line series, calender, extruder, filter rubber machine series, film cooling line series, plate vulcanization machine series and so on.
Our Advantages
The company has T150 large floor boring machine, 2m×6m large planer milling machine, MQ1350A×3000 cylindrical grinding machine, M7150×2000 surface grinding machine, C62100B×5000 large lathe, C61110×3000 large lathe, C6180×3000 large lathe, C6125×3000 large car Bed, T611B horizontal boring machine, CNC lathe and a series of advanced processing equipment, according to customer requirements to produce a variety of special rubber machinery equipment.

---
