Shredder Machine Paper, Waste Paper Recycling System for Corrugated Board Production

Product Description

Our company has designed a waste paper disposal system for the entire corrugated board production factory. The waste paper disposal system for corrugated board production line consists of a shredding-fan, which, through the soft metal tubes absorbed the side trim of corrugated board, in shredding-fan cardboard is torn to pieces, and then transferred to a cyclone or to waste paper storage room. Waste paper of flexo printer slotter, die-cutter drop to drive conveyor belt installed in the floor, where waste paper into the shredding-fan, then the waste paper pieces transfers to cyclone or to the waste paper storage room. Waste cardboard or boxes after grinding through the shredder, and after shredding-fan transfers to cyclone.
Waste paper of the entire production after cyclone fall in the bailing-press. In cyclone, you can add a device to reduce the dispersion of moisture paper dust. Small part of the paper dust blown with air flow or eliminated by simple way of spraying water.

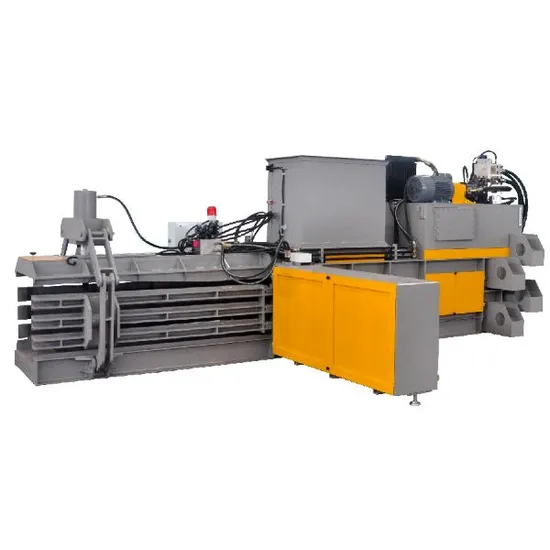

Technological Parameters:

Item	Parameters
Model	RYPW60F
Hydraulic Power	60Tons
Bale size	850*750*(500-1600)MM
Design Capability	2 ~ 3tons/hour
Feed opening size	1200*750mm
Bale Line	4Lines
Bale Weight	300-500kg/m3
Voltage	200-480V, can be customized
Power	15KW/20HP
Machine Size	About 5.68*1.78*2.1m
Machine Weight	About 5900KG

---
