Product Details
Product Description
Product Description
Product Description:

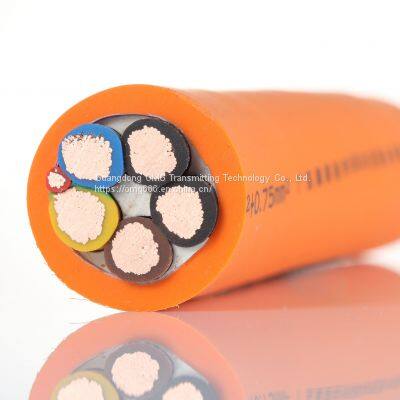

The cable sheath material is made of high-performance TPU, in line with the EU EN50620 standard, with high tensile force and high tension, durable, low temperature resistance, and is an internationally recognized environmentally friendly material.
Product Parameter:
Construction
|
1.Conductor
|
Material: Bare Copper
|
2.Insulation
|
Material: ERP
|
Color： Brown，Blue，Yellow/Green
|
3.Filler
|
Material: PP Cord
|
4.Tape
|
Material:Non-woven fabrics
|
5.Sheath
|
Material: TPU
|
Color: Black （customizable）
|
Product Features:
Rated temperature: -40℃～90℃
Rated Voltage: AC 300/500V, 450/750V; DC 1000V
Flame Test: VW-1 level
Environmental Requirements: Compliant with RoHS and REACH
Why choose OMG?
1. OMG is a well-known EV cable manufacturer in China. With rich experience and excellent technology, OMG can ensure that all cables produced can provide the best user experience. EV charging cables remain soft and stiff in cold environments.
2. We specialize in the production of EV charging cables, EV high-voltage cables, and Liquid-Cooled Charging Cables for more than ten years and have rich experience.
3. OMG electric vehicle cables have successively obtained IATF16949, TUV, China CQC, China DEKRA, IEC62893, EN50620, UL62 and JCS4522 certificates.
4. Samples can be obtained before ordering our products.
5. Usually we can finish your order within 2-3 weeks, and within 5-6 weeks during peak season.
6. Our products have undergone a number of QC tests before leaving the factory to ensure that all qualified products reach the hands of users.
