28 Blades Disc Harrow (Medium Mounted Disc Harrow) 1bjx Seriers

Product Description

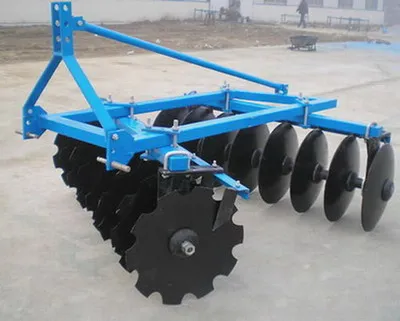

High-efficiency 1BJX-1.7 Middle-duty Disc Harrow
1BJX-1.7 middle-duty disc harrow is mainly applicable to clean the crop residue before tillage, break the hardened soil and return the chopped straw to the soil, and also can crash the soil after tillage and level the land.
It can be used as tillage machine instead of plow on the cultivated land. With the efficient productivity, reasonable utilization of the power, great ability of cutting and shattering the soil , the soil surface is smooth and loosening after harrowing, it is well suitable for heavy clay soil, waste land and weedy field as well.
Advantages:
1. It is a mounted medium disc harrow for 30-80hp tractor .
2. Notched disc blade of this tractor offset disc harrow in front, and flat plough disc in rear.
3. Fit the scraper for each disc blade to clean the objects.
4. The working depth can be adjusted freely

Model	Uint	1BJX-1.7	1BJX-2.O	1BJX-2.2	1BJX-2.4	1BJX-2.5
Woeking width	M	1.7	2	2.2	2.4	2.5
Working depth	Cm	14-18
Angle of approach	Deg	11 14 17 20 23			14 17 20 23 26
No.Of disc	Pcs	16	18	20	22	24
Productivity	Ha/h	1.3	1.5	1.6	1.8	1.9
Overall dimension	Mm	1960*1880*1317	1980*2240*1317	1980*2470*1317	2780*2570*1340	2970*2680*1460
Linkage		Three point mounted
Weight	Kg	400	434	463	604	700
Matched power	Kw	25.7-33	36.7-47.7	40-47.8	47.7-58.8	55-60

---
