Glanding Packing Seal High Viscosity Centrifugal Slurry Pump

Product Description

Glanding Packing Seal High Viscosity Centrifugal Slurry Pump
Characteristics

·Type:	·Media:	·Application:
centrifugal	slurry	macerator
·Other characteristics:	·Flow rate:	·Pressure
horizontal	Min.:0m3/h	Min.: 0Pa
	Max.: 5000m3/h	Max.: 2020000Pa
·Head
Min: 0m
Max: 73m

Description

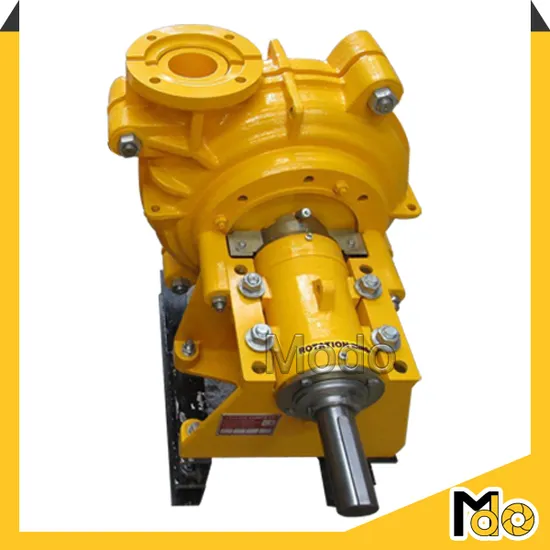

The Modo MAH series pumps are cantilevered, horizontal centrifugal slurry pumps designed for handling abrasive, high density slurries in a wide range of applications.
MAH pumps are manufactured to be interchangeable with the most common slurry pump designs and feature a wide range of options. MAH Slurry Pumps provide rugged performance and reliability in the most demanding slurry pumping applications.

Features

Bearing assembly- large diameter shaft with short overhang contributes to long bearing life.
Liners - easily replaceable liners are bolted, not glued to the casing for positive maintenance.
Casing - casing halves of cast or ductile iron provide high operating pressure capabilities.
Impeller - front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.
Throat bush - wear is reduced and maintenance simplified by the use of tapered.
Application
Transfer of abrasives and high density slurries in:
Mining
Metallurgical Processing
Civil Construction
Heavy Industry
Processing
Details Pump Parts Material

Rubber Pump			Metal Pump
No.	Part Description	Material Specification	No.	PartDescription	Material Specification
1	Base	Cast Iron	1	Base	Cast Iron
2	Shaft	4140 High Tensile Steel*	2	Shaft 4140	High Tensile Steel*
3	Bearing Assembly	Timken (Cast Iron Body)	3	Bearing Assembly	Timken (Cast Iron Body)
4	Shaft Sleeve	420 Stainless Steel	4	Shaft Sleeve	420 Stainless Steel
5	Pump Casing	Cast Iron	5	Pump Casing	Cast Iron
6	Frame Plate	Liner Insert Rubber	6	Frame Plate	Liner 27% Chrome White Iron
7	Cover Plate	Liner Rubber	7	Volute Liner	27% Chrome White Iron
8	Impeller	Rubber Coated High Tensile Steel	8	Impeller 27%	Chrome White Iron
9	Throat Bush	Rubber	9	Throat Bush	27% Chrome White Iron
10	Cover Plate	Cast Iron	10	Joint Rings	Rubber
11	Stuffing Box	Cast Iron	11	Cover Plate	Cast Iron
12	Expeller	27% Chrome White Iron	12	Stuffing Box	Cast Iron
13	Expeller	Ring Natural Rubber	13	Expeller	27% Chrome White Iron
14	Bolts	Zinc Plated Steel	14	Expeller Ring	Natural Rubber
15	O-rings	Nitrile Rubber	15	Bolts	Zinc Plated Steel
16	Seals	Rubber	16	O-rings	Nitrile Rubber
			17	Seals	Rubber

FAQ
A: What kind of company you are?
Q: We are centrifugal pump manufacture located in Boy Town, Baoding, China, with more than 20years experiences. We were gaining good reputation among our customers for our professional, warm and thoughtful service. Because we know that a long terms business based on the quality control, price, packing, delivery time etc.

A: What's the quality assurance you provided and how do you control quality?
Q: Established a procedure to check products at all stages of the manufacturing process: Casting, Heat treatment, Machining, Assembly, and Testing.

Q: Can you install the motor or diesel engine with the pump for us?
A: yes, we can, it's no problem, and we are experienced in this.

Q: What's your MOQ?
A: Trial sample order is OK.

Q: What are your payment terms?
A: T/T, L/C, D/P, D/A......

Q: What certificates do you have?
A: CE, ISO 2008, UL.....

Q: How about the warranty?
A: One year warranty for pumps, it depends on other pump working condition details.

Q: What is the delivery time?
A: 15-30 days according to customer quantities.

Q: Can you do OEM brand?
A: Yes, Welcome.

Q: What information should I offer to get pump solution?
1, Material:
2, Head: m
3, Flow: m3/h
4, Medium size: mm
5, Particle shape (smooth or sharp):
6, Medium pH level:
7, Temperature:
8, Drive type:
9. Power supply:
Contact me for detail offer with curve and drawing!
Zero Zuo
Mob: +86 151 0020 1848
Tel: +86 312 8929296
Fax: +86 312 3085383

---
