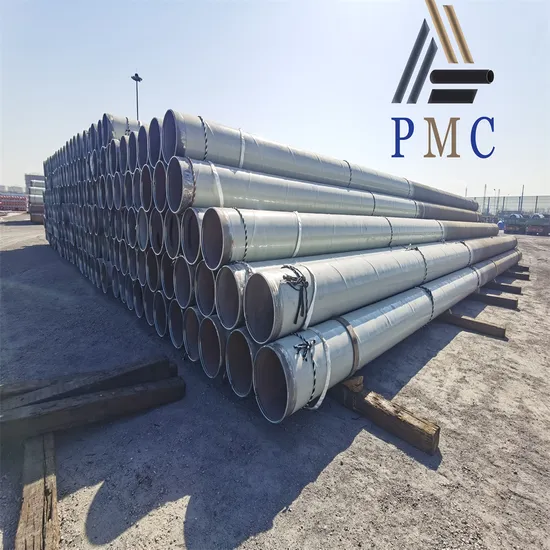

API 5L Psl1/2/ASTM A53/A106 Gr.B/JIS DIN/A179/A192/A333 X42/X52/X56/X60/65 X70 Stainless/Black/Galvanized/Round Square Grooved Seamless/Welded Carbon Steel Pipe

Product Description

Product Description: Seamless steel pipe with hollow section, a large number of used for conveying fluid pipeline, such as conveying oil, natural gas, gas, water and some solid material pipeline. Compared to the steel pipe and round steel solid steel bending torsional strength phase at thesame time, the weight is lighter, is a kind of economic cross section steel, widely used in the manufacture of structural and mechanical parts, such as petroleum drill pipe, auto transmission shaft, bicycle frame and construction of steel scaffolding is used with steel pipe manufacturing annular parts, such as can improve material utilization, simplifying the manufacturing process, material saving and processing time, Has been widely used in steel pipe manufacturing .
Specification: ASTM Standard for seamless steel pipe

Executive Standard	Grade / Material	Product Name
ASTM A53	A, B	Black and Hot-Dipped Zinc-Coated Steel Pipes Welded and Seamless
ASTM A106	A, B	Seamless Carbon Steel for High Temperature Service
ASTM A179	Low Carbon Steel	Seamless Cold-Drawn Low-Carbon Steel Heat Exchanger and Condenser Tubes
ASTM A192	Low Carbon Steel	Seamless Carbon Steel Boiler Tubes for High Pressure
ASTM A210	A1, C	Seamless Medium-Carbon and Alloy Steel Boiler and Super heater Tubes
ASTM A213	T5, T11, T12, T22 TP 347H	Seamless Ferritic and Austenitic Alloy Steel Boiler, Superheater and Heat- Exchanger Tubes
ASTM A312	TP304/304L, TP316/316L	Seamless Steel Pipe for Stainless Materials
ASTM A333	Gr.6	Seamless and Welded Steel Pipe for Low-Temperature Service
ASTM A335	P9, P11, P22	Seamless Ferritic Alloy Steel Pipe for High-Temperature Service
ASTM A519	4130,4140	Seamless Carbon and Alloy Steel for Mechanical Tubing
ASTM A789		Seamless Ferritic/Austenitic Stainless Steel Tubing for General Service

API Standard for seamless steel pipe

Executive Standard	Grade / Material	Product Name
API Spec 5CT	J55, K55, N80, L80,C90, C95, T95, P110, M65	Specification for Casing and Tubing
API Spec 5L PSL1 / PSL2	A,B X42, X46, X52, X56, X60, X65,. X70	Specification for Line Pipe

EN/DIN Standard for seamless steel pipe

Executive Standard	Grade / Material	Product Name
DN 17175/EN10216-2	ST35, ST45, ST52, 13CrMo44	Seamless Steel Tube for Elevated Temperature
DIN 2391/EN10305-1	St35, St45, St52	Cold Drawn Seamless Precision Pipe
DIN 1629/EN10216-1	St37, St45, St52	Seamless Circular unalloyed Steel Tubes Subject to Special Requirements

Product	Seamless Steel Pipe For Exploration & Production
OD	13.72 mm - 914.4 mm
WT	1.65 mm - 22 mm
Length	0.5 m - 20 m
Standard	API 5L PSL1 /PSL2
Material	GR.B/X42/46/X52/56/X60/65/X70/80
Usage	Chilled Water Pipe, Drinking water Pipe, W aste Water Pipe, Structural Tube, Fluid Pipe, Boiler Pipe, Oil and Gas Transportation Pipe, Mechanical Structure Pipe

Chemical composition and mechanical properties:

API 5L PSL1
Standard	Grade	Chemical Components				Tensile STrength(min)	Yield Strength(min)
		C	Mn	P	S	Mpa	Mpa
API 5L	A	0.22	0.90	0.030	0.030	331	207
PSL1	B	0.28	1.20	0.030	0.030	414	241
	X42	0.28	1.30	0.030	0.030	414	290
	X46	0.28	1.40	0.030	0.030	434	317
	X52	0.28	1.40	0.030	0.030	455	359
	X56	0.28	1.40	0.030	0.030	490	386
	X60	0.28	1.40	0.030	0.030	517	414
	X65	0.28	1.40	0.030	0.030	531	448
	X70	0.28	1.40	0.030	0.030	565	483
API 5L PSL2
Standard	Grade	Chemical Components				Tensile STrength(min)	Yield Strength(min)
		C	Mn	P	S	Mpa	Mpa
API 5L	B	0.24	1.20	0.025	0.015	414	241
PSL2	X42	0.24	1.30	0.025	0.015	414	290
	X46	0.24	1.40	0.025	0.015	434	317
	X52	0.24	1.40	0.025	0.015	455	359
	X56	0.24	1.40	0.025	0.015	490	386
	X60	0.24	1.40	0.025	0.015	517	414
	X65	0.24	1.40	0.025	0.015	531	448
	X70	0.24	1.40	0.025	0.015	565	483
	X80	0.24	1.40	0.025	0.015	621	552

Types of galvanized steel pipe

STANDARDS	PRODUCTS	RANGES
IS:1239 (Part-I)	Mild Steel Tubes, Tubular	15mm NB - 150mm NB
IS:1161	Mild Steel Tubes for Structural purpose	15mm NB - 200mm NB
IS:3601	Mild Steel tubes for Mechanical & General Eng. purpose	20mm x 0.80mm to 165.10 x 7.00 mm
IS:3589	ERW Pipes for water Gas & Sewage	168.3 x 4.00 mm to 219.1 x 7.00mm
IS:9295	Steel Tubes for Idlers for Belt conveyors	63.5 x 4.00 mm to 219.1 x 7.0 mm
IS:4270	Steel Tubes for Water Wells	114.3 x 5.00mm to 219.1mm x 7.1mm
IS:7138	Steel Tubes for furniture	20.0 x .60mm to 60.0 x 2.0mm
IS:4923	Hollow Steel sections for structural purpose	12.5 x 12.5 x 0.80 to 150 x 150 x 6.0mm 10 x 20 x 0.80mm to 150 x 200 x 6.0mm
IS:3074	Steel Tubes for Automobile purpose	19.7 x 1.00mm to 101.6 x 6.0mm
BS:1387	Screwed & Socket Steel Tubes & Tubular	½"NB to 6″NB 2.00 mm - 5.40 mm wall thick
BS:3601	Steel Pipes & Tubes for pressure purpose	½"NB to 6″NB 2.00 mm - 7.00 mm wall thickness
BS:6323	Steel tubes for mechanical & general engineering purposes	21.3″ to 219.1mm OD wall thickness-1.60-7.00 mm

Latest coating project:
About us:
Permanent Steel Manufacturing Co.,Ltd has been committed to being a major supplier of quality kinds of carbon steel pipe, stainless steel tube, hollow section numerous types of piping equipments including Bend, Cap, Coupling, Elbow, Reducer, Stub End, Tee, Olet, Joint, Gasket, etc.

The Products from Permanent Steel Manufacturing Co.,Ltd are supplied in accordance with appropriate International Standards as well as Customer Specifications in a large variety of steel grades and dimensions. Permanent Steel Manufacturing Co.,Ltd on a 250,000 m2 area and has three production units: Foundry, Rolling and Extrusion mills. Permanent Steel Manufacturin
g Co.,Ltd operates under strict quality, environmental, as well as health and safety management systems, in compliance with ISO 9001, ISO 14001 and OHSAS 18001 standards. Besides,we have two advanced three-layer PE anticorrosive pipe production lines, which can carry out three-layer PE and FBE anticorrosion for steel pipe with diameter of 20mm to 1820mm, as well as epoxy asphalt anticorrosion production line, steel-plastic composite pipe production line, internal and external plastic coating and plasticlining production line, and cement mortar production line for inner wall of steel pipe. The annual anticorrosion production capacity reaches 18 million square meters. Since its establishment, the company has formed a good cooperative relationship with many domestic and foreign steel pipe manufacturers, gas companies and oil companies, and its sales network covers many countries.
Factory:
Experimental Equipment:
Team&Cooperation
End Users:
Our advantage:
1. Full projects reference all of the world and vendor references from the most main oil and Gas in stitute, companies, investors
2. The inspection program is full supported to the docs requirements
3. The list of producing equipment and inspection equipment will be provided
4. The relative shipping docs, third party inspection report, Mill test certification, custom appreciate letters
5. The mill certification such as API monogram , ISO ect....
7. ITP, MPS & ISO manual
8. Prices competitively level
9. Full presentation experiences and guidance
10. Engineering design & construction capacities
11. Financial supports, various of payment term could be acceptable such as L/C, T/T.
12. Free custom inspection corporation & checked corporation in CCPIT
13. Full bank supported company with a perfect line of Credit "AAAAA"
ect
FAQ

Q: How long is your delivery time?
A: Depends on pipes size and quantity. 7-10 days for stocked steel pipe and 20-40 days for new productions according to quantity.bowl shape stainless steel smoking pipe screens
Q: Do you provide samples? Is it free or extra? 201 Stainless Steel Pipe used for Food and Chemical Industry
A: Yes,we could offer free steel pipe sample for your evaluation. stainless steel pipe fitting
Q: What is your terms of payment? steel pipe
A: TT payment way, TT+LC, or 100% sight LC and usance L/C for 30-120days,the specific payment should be addressed by further discussion.

---
